● Complies with IEEE802.11k/v/r

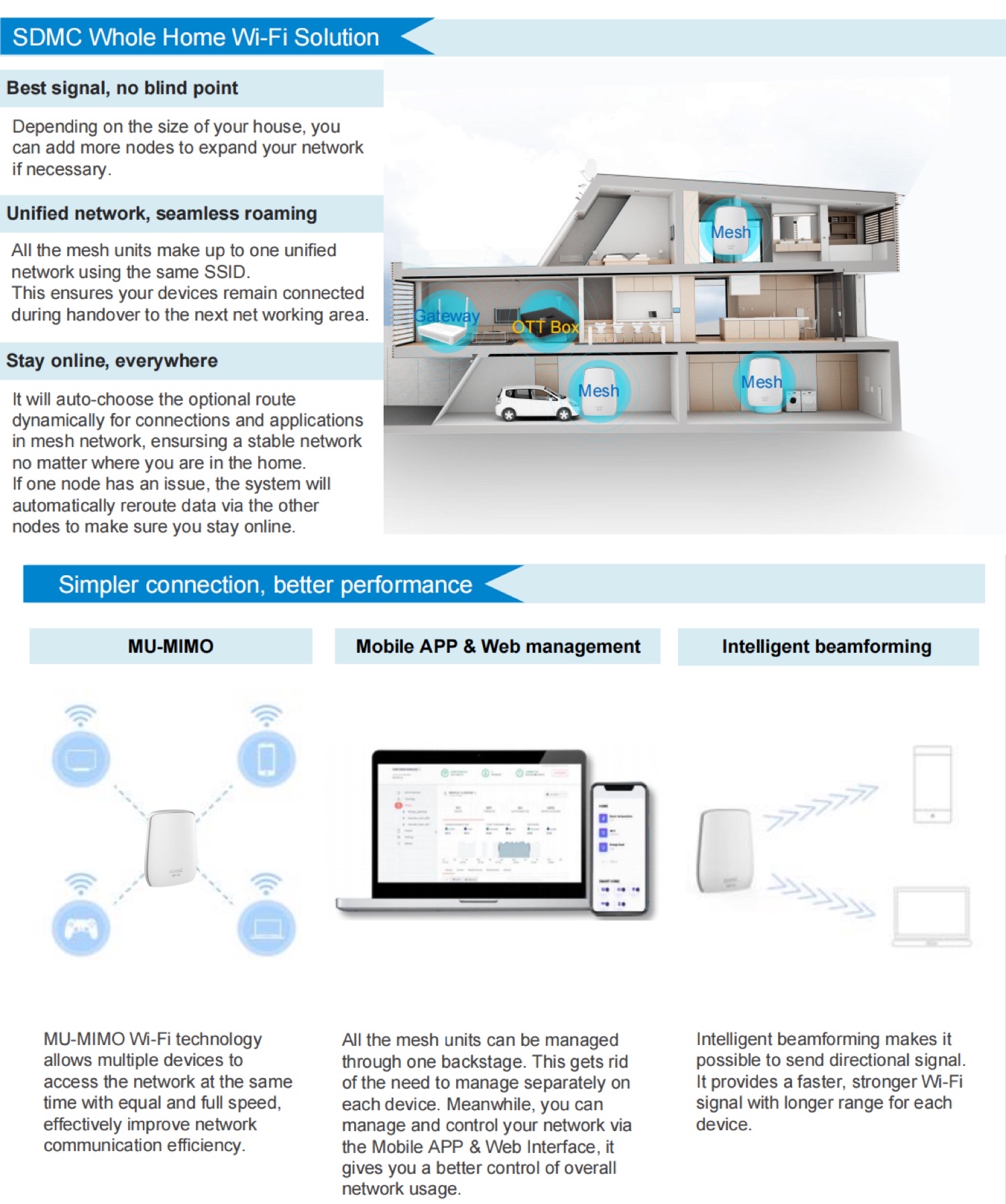

● EasyMesh is a scalable system , whole-home coverage and a consistently strong signal,without limited coverage or disconnection
● Dual-band OFDMA allowing for a higher density of simultaneous users
● Support MU-MIMO, simultaneous connection of multiple devices
● Support WPA3, and the latest and most advanced Wi-Fi security protocol.
● Support WPS button, you can access to your home network more safely and easily
● Can use mobile App management to easily set up your Wi-Fi and manage the network
● 2400Mbps on 5GHz and 600Mbps on 2.4GHz band for total 3000Mbps simultaneously
● Using a centralized management backstage, you can easily manage all mesh grid nodes and set different network rules for devices accessing the network,such as guest network,parental controls,Qos
● Intelligent beamforming delivers highly targeted and efficient Wi-Fi connection
● Wireless roaming helps users auto switch to stronger signal source
|
BASIC PARAMETERS |
Basic Features |
SSID Broadcast Support MU-MIMO |
|
CPU |
Quad Core A7 1.7GHz, DMIPS 12600 |
|
|
Signal Rate |
5GHz (2x2): Up to 2400Mbps 2.4GHz (2x2): Up to 600Mbps |
|
|
Wireless Security |
WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE encryption |
|
|
HARDWARE |
Interface |
1 x 10/100/1000 Mbps WAN Port 3 x 10/100/1000 Mbps LAN Port 1 x DC Port |
|
Button |
WPS/Mesh Button, RESET Button |
|
|
Power Supply |
DC 12V1A |
|
|
Antenna |
4 x 3 dBi Internal antennas |
|
|
LED |
PWR, Wi-Fi, WPS/Mesh |
|
|
Dimensions |
140mm*53mm*180mm(L*D*H) |
|
|
SOFTWARE |
WAN Type |
Dynamic IP/ Static IP/ PPPoE |
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
|
QoS |
WMM, Bandwidth Control |
|
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ, DDNS |
|
|
Access Control |
Parental Control, Local Management Control, Access Schedule, Black List |
|
|
Firewall Security |
DoS, IP Address Filter/MAC Address Filter/Website Filter, AP Isolation |
|
|
Internet Protocol |
IPv4, IPv6 |
|
|
Management |
Access Control, Local Management, Remote Management, APP, TR-069, Cloud Platform |
|
|
Mesh |
IEEE802.11k/v/r, Network Topology, EasyMesh, Seamless Roaming |
|
|
Wireless |
Guest Network, Timing Off, Multi - frequency integration, MU-MIMO, Hidden SSID, WPS |
|
|
Device Management |
Reboot, Restore Factory, Beckup/Restore, Timing Reboot, Firmware Upgrage |
|
|
Monitoring |
CPU Utilization, CPU Temperature, Memory Utilization, Flow, Upload/Download Rate |
|
|
Other |
NAT, Indicator switch, System Log, Speed Test, Channel analysis, Signal Power Regulation |
|
|
ENVIRONMENT |
Operating Temperature |
0 ℃~40 ℃ |
|
Storage Temperature |
-40°C~70°C |
|
|
Relative Humidity |
10%~90%, non-condensing |
|
|
Storage Humidity |
5%~95%, non-condensing |
