DV8957 is Amlogic S905X4 powered android tv ott box with AV1 and WiFi 6 support. the android tv solution specially designed for operators, ISP, wholesalers, brand owners, etc.
● Quad Core 64-bit CPU
● Power management auxiliary processor
● Streaming Protocol: RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
● Air Remote:Can use the android and iOS mobile phone to control
● System upgrading:Upgrade software via USB or network
● Google Assistant and Chromecast Built-in
● Built in lots of content and entertainment, such as YouTube, Netflix, Prime Video and Disney Plus, etc
● Support thousands of Apps for the big screen with Google Play Store.
Contact Sales
● Quad Core 64-bit CPU
● Power management auxiliary processor
● Streaming Protocol: RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
● Air Remote:Can use the android and iOS mobile phone to control
● System upgrading:Upgrade software via USB or network
● Google Assistant and Chromecast Built-in
● Built in lots of content and entertainment, such as YouTube, Netflix, Prime Video and Disney Plus, etc
● Support thousands of Apps for the big screen with Google Play Store.
Amlogic S905X4 Android TV Box Highlights

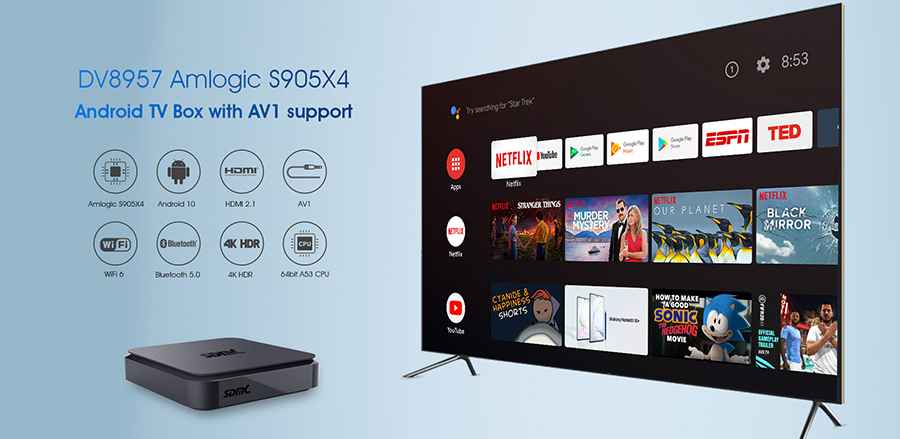

DV8957 is a 4K HDR OTT Android TV OTT Box powered by Amlogic S905X4 proccessor. The S905X4 is the evolution of
the Amlogic S905X3 with AV1 codec support.With rapid innovations of features and functionality. It provides maintenance-free
Android TV platform and cost-saving solution for customers.
Endless content and Apps
Easy access to endless original content from Android ecosystem, including Netflix, Amazon Prime Video, YouTube, Sling and Hulu, etc.
Google Assistant Built-in
Just press the mic button on the remote to get what you want, such as playing the content, controlling home devices ,etc.
Chromecast Built in
You can quickly cast photos, videos, music and more from your phone, tablet or PC to your TV.
Support Android TV Operator Tier Launcher
Focusing on operator's main business goal, content operation and revenue growth, we can provide our excellent Android TV launcher
to help operators get successful business. Contact us to customize your Android TV Launcher!
Google, Google Play, YouTube, Android TV, Chromecast and other related marks and logos are trademarks of Google LLC
| Basic parameters | ||
| System | SoC: Amlogic S905X4 | |
|
CPU: ARM Quad 64-bit Cortex-A55 up to 2GHz (DVFS) |
||
| GPU: ARM Mali-G31 MP2 | ||
| DRAM: DDR 2GB (4GB)Optional | ||
| Flash: eMMC 8GB (16GB, 32GB, 64GB)Optional | ||
| OS: Android™ 10 or higher | ||
| HDR: HDR 10,HLG,PRIME HDR, TCH PRIME，HDR10+Optional, Dolby VisionOptional | ||
| Graphic Subsystem:OpenGL ES3.2,Vulkan1.1 and OpenCL2.0 | ||
| DRM:Widevine, Playready; VerimatrixOptional；Irdeto MSR2.2Optional； Nagra TKL Optional | ||
| HDMI 2.1, CEC, HDCP2.2 | ||
| Media |
Video Decoder: AV1 MP-10 4K*2K@60fps, H.265 HEVC Mp-10 4K*2K@60fps,VP9 4K*2K @60fps, AVS2-P2 4K*2K@60fps, H.264 AVC 4K*2K@30fps, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10 |
|
|
Video Format: MKV, WMV(Optional), MPG,MPEG,DAT,AVI,MOV,ISO,MP4,RM,JPG etc. |
||
|
Audio
Decoder: MPEG1/2, MP3, AAC/AAC+, WMA/WMA-pro (Optional), FLAC, OGG,AC3 Optional,DTS optional |
||
|
Audio Format: MP3, AAC, WMA (Optional), RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc. |
||
| Subtitle format:SRT, ASS, SSA etc. | ||
| Photo format:HD JPEG/BMP/PNG etc. | ||
| Network | RJ45 Interface 10M/100M adaptive （10M/100M/1000M ）optional | |
| MIMO Wi-Fi 2.4GHz a/b/g/n/ac (2.4GHzOptional) | ||
| Bluetooth 4.2 or higher | ||
| Connectivity | Video output:HDMI 2.1, AV | |
| Network:RJ45 | ||
| Peripheral interface:USB 3.0x1, USB2.0 x1 , TF card slot | ||
| Power interface:DC 5V | ||
| Front panel:Power indicator | ||
| Others | ||
| Input voltage | DC in 5V/2A | |
| Power consumption | 10W Max | |
| Operation temperature | 0~40℃ | |
| Physical characteristics | Size(L*W*H): 135 * 135 * 27.5cm | |
|
Material: plastic |
||
| Proposed Accessory | Bluetooth Voice Remote control, User manual, Power adapter, HDMI cable | |
- 17 years' experience in the industry of Digital TV and OTT/IPTV
- Developed and designed Amlogic Android products since 2011 based on Android 2.0
- Top 5 in Google's Android TV pipelines
- More than 100 Android TV projects
- Only 2 weeks to pass the Netflix hailstorm certification without operator's tier
- Own DVB middleware is being used for many broadcasters
- SDMC's XMediaTV OTT platform provides fast customization for operators
- Factory partners with India, Thailand, Indonesia, Vietnam, Brazil to avoid high tax
-
-
