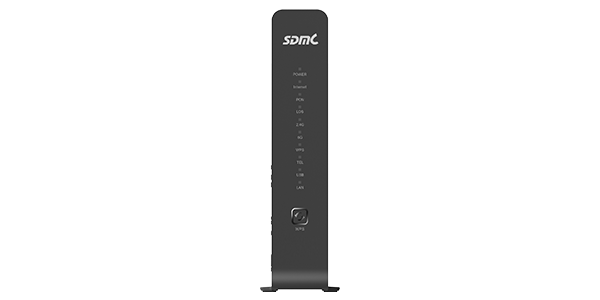

Wi-Fi 6 AX6000 Dual-Band DOCSIS 3.1 Cable Modem (NE6099)

The NE6099 is a high-performance cable gateway integrating a DOCSIS 3.1 cable modem, router, voice, and wireless access point into a single device. Designed for enterprise and home use, it delivers exceptional speeds with Wi-Fi 6 dual-band connectivity, reaching up to 5952Mbps. Equipped with a 2.5GE port, multiple Gigabit Ethernet ports, and carrier-grade VoIP, the NE6099 ensures seamless wired and wireless networking. With robust DOCSIS compatibility, advanced security, and flexible connectivity options, it provides a future-ready solution for high-speed broadband access.

  • DOCSIS 3.1 Technology: Compatible with DOCSIS/Euro-DOCSIS 3.1/3.0/2.0/1.1/1.0, ensuring high-speed broadband access.
  • Ultra-Fast Wi-Fi 6: Dual-band wireless connectivity with up to 4804Mbps on 5GHz and 1148Mbps on 2.4GHz, delivering a total of 5952Mbps.
  • High-Capacity Data Transmission: Supports 32x8 DOCSIS 3.0 channels and 2x2 OFDM/OFDMA DOCSIS 3.1 channels for superior data performance.
  • Gigabit Wired Connectivity: Equipped with three Gigabit Ethernet ports and one 2.5GE port for high-speed wired networking.
  • Carrier-Grade VoIP: Two FXS lines with HD voice support for reliable voice communication.
  • USB 3.0 Port: Enables fast connections to printers, storage drives, and gaming devices.
  • Full Capture Bandwidth Tuner: Enhances signal reception and transmission efficiency.
  • PacketCable Compatibility: Supports PacketCable 1.5/2.0 for seamless VoIP and multimedia services.

Standards

IEEE802.11a/n/ac/ax @5GHz,

IEEE802.11b/g/n/ax @2.4GHz

Wireless Data Rate

5GHz (4x4): 4804Mbps,

2.4GHz (4x4): 1148Mbps

Interface

1 x RF Port

3 x GE Port

1 x 2.5GE Port

2 x FXS Port

1 x USB Port

Power Supply

DC 12V3.5A

Antenna

4 x 3 dBi Internal dual-band antennas

Dimensions

200*68*240mm(L*D*H)

Operating Temperature

0 ℃~50 ℃

RF Downstream Channel Width

DOCSIS3.0 6 MHz

DOCSIS3.1 24-192 MHz

RF Upstream Channel Width

DOCSIS3.0 0.2, 0.4, 0.8, 1.6, 3.2, 6.4 MHz

DOCSIS3.1 96MHz

Standard Packing List

1 x Power Adaptor

1 x NE6099

1 x Quick Installation Guide

1 x Ethernet Cable
