NE6037_AX6000 DOCSIS 3.1 EMTA Cable Modem Router

NM6037 is a high - performance Wi-F i6 DOCSIS 3.1 Cable Modem Router, it adopts Maxlinear chipset, provides gigabit network interface, supports 2.4G and 5G wireless network, wireless transmission rate can reach up to 6000Mbps, supports rich software features, as a new generation of Wi-Fi6 products, for enterprises and families better online experience.

  • Full Compliant with DOCSIS 3.1 2*2 / 32*8
  • Full Compliant with DOCSIS1.0,1.1,2.0,3.0
  • Full compliant with IEEE802.11a/b/g/n/ac/ax

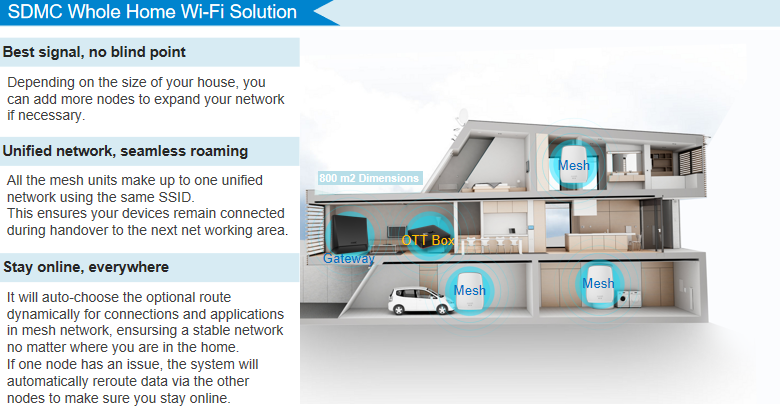

  • Smart mesh networking.
  • Complies with IEEE802.11k/v/r
  • Dual-band OFDMA allowing for a higher density of simultaneous users

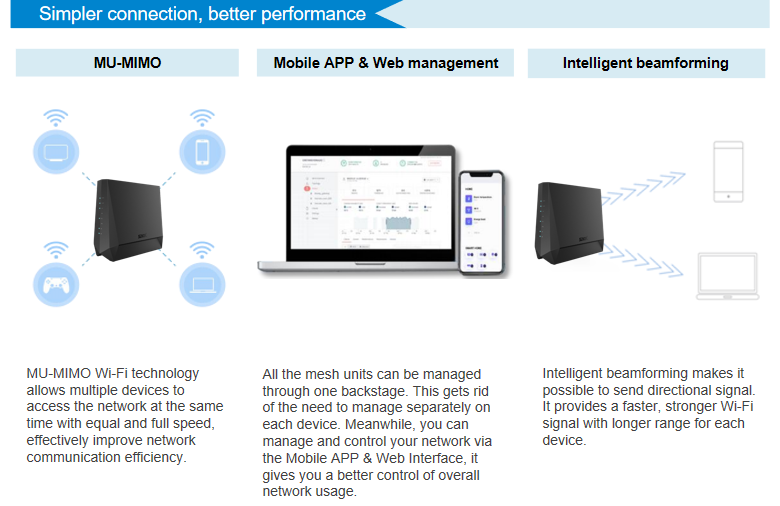

  • Support MU-MIMO, simultaneous connection of multiple devices
  • Can using mobile App management to easily set up your Wi-Fi and manage the network
  • 4800Mbps on 5GHz and 1200Mbps on 2.4GHz band for total 6000Mbps simultaneously
Contact Sales





Basic Features    DOCSIS 3.1 Support
SSID Broadcast
Support MU-MIMO
Standards IEEE802.11a/n/ac/ax @5GHz,
IEEE802.11b/g/n/ax @2.4GHz
Signal Rate 5GHz (4x4): Up to 4800Mbps,
2.4GHz (4x4): Up to 1200Mbps
RF Downstream Bonded Channels
up to 32
Upstream Bonded Channels
up
 to 8
Interface 1 x RF Port
4 x 10/100/1000 Mbps LAN Port
2 x FXS Port
1 x USB Port
Button WPS/Mesh Button, RESET Button
LED POWER, D/S, U/S, ONLINE, LAN,
2.4G,
 5G, WPS
Antenna 4 x 3 dBi Internal dual-band
antennas
LED POWER, D/S, U/S, ONLINE, LAN,
2.4G, 5G, WPS
Power Supply DC12V 3.5A



Physical

Items

Features

Operating Temperature

0 to 40

Operating Relative Humidity

10-90% (Non condensing)

Storage Temperature

-40 to 70

Storage Humidity

Storage Humidity

Dimensions (H x W x D)

255*90.5*221.5mm(L*D*H)

Diagnostic LED

POWER, US, DS, ONLINE, 2.4G, 5G, TEL1, TEL2,WPS

Button

WPS, RESET

DRAM

1GB

Flash

eMMC 512MB+ 2MB Nor flash

Antenna

4 x 3 dBi Internal dual-band antennas

Power Supply

DC 12V3.5A

Interfaces

Items

Features

RF Interface

External F type connector

Data Interfaces

4 x 10/100/1000 Base-T Ethernet (RJ-45 connector)

Analog Telephony Interface

2 lines, RJ-11

USB Interfaces

USB3.0 Port

Input Voltage

100~240VAC, 50/60 Hz

RF Downstream

Items

Features

Channels

32 DOCSIS 3.0 QAM single-carrier channels

2 OFDM channels

Tuner Configuration

Full capture tuning range

Frequency Range

108 - 1218 MHz or 258 - 1218 MHz

Downstream channel width

DOCSIS3.0 6 MHz

DOCSIS3.1 24-192 MHz

RF Input Sensitivity Level

-15 to +15 dBm

Data Rate (Max.)

2.5Gbps

Modulation Type

DOCSIS3.0 64, 256, 1024, 2048

DOCSIS3.1 4096 QAM

RF Upstream

Items

Features

Bonded Channels

8 DOCSIS 3.0 QAM single-carrier channels

2 OFDM-A channels

Frequency Range

5 - 85 MHz or 5 - 204 MHz

Data Rate (Max.)

500Mbps

Upstream channel width

DOCSIS3.0  0.2, 0.4, 0.8, 1.6, 3.2 and 6.4 MHz

DOCSIS3.1  96MHz

RF Output Level

+57 dBmV (32QAM and 64QAM, single upstream)

+54 dBmV (32QAM and 64QAM, 4-8 upstreams)

+58 dBmV (8QAM and 16QAM, single upstream)

+56 dBmV (SCDMA, single upstream)

+53 dBmV (SCDMA, 2-8 upstreams)

Modulation Type

DOCSIS3.0 QPSK, 8QAM, 16QAM, 32QAM, 64QAM and 128QAM (en S-CDMA)

DOCSIS3.1 4096 QAM

Wireless

Items

Features

Frequency Range

2.4GHz(2.412~2.484GHz) and 5GHz(5.15~5.95GHz)

Data Rate

5GHz (4x4): Up to 4800Mbps,

2.4GHz (4x4): Up to 1200Mbps

Transmit Power

2.4GHz  +23dBm (MCS0), +20dbm (MCS7)

5.8GHz  +19dBm (MCS0), +16dbm (MCS9)

Receive Levels

2.4GHz    <-80dBM 802.11n (MCS0) ,

<-69dBm 802.11n (MCS7), HT20

5.8GHz    <-78dBM 802.11ac (MCS0) ,

<-55dBm 802.11ac (MCS9), VHT80

Bandwidth of channel

20, 40 , 80 MHz and 160 MHz

Modulation Type

BPSKQPSK16QAM256QAM1024QAM

Telephony

Items

Features

Supervisory Voltage

48 Vdc nominal

Ringing Load Capacity

10 REN total; 5 per line

Provisionable High Loop

Current Mode

Yes (40mA constant current source)

Standard

G.711a, G7.11u, G.729A / B, iLBC, G.722 and T.38.

Call

3- way call.

Call waiting.

Originating and terminating call transfer.

SIP

ACKBYECANCELINVITEREGISTER

NOTIFY

OPTIONS

PRACK

REFER

  • Compatible with DOCSIS/Euro-DOCSIS 3.1/3.0/2.0/1.1/1.0
  • Compatible with PacketCable1.5/2.0
  • Dual-band concurrent Wireless Access Point compatible with 802.11a/b/g/n/ac/ax
  • 32 downstream x 8 upstream DOCSIS 3.0 channels, 2 downstream x 2 upstream OFDM DOCSIS 3.1 channels.
  • 1x USB3.0 port for fast connection to printers, game boxes, storage drives and other devices.
  • Full Capture Bandwidth Tuner
  • Four 10/100/1000BASE-T Ethernet ports to provide wired connectivity
  • Two FXS lines of carrier-grade VoIP with HD voice support
  • Built-in BPI / BPI plus
