Triple Band Wi-Fi Mesh Router

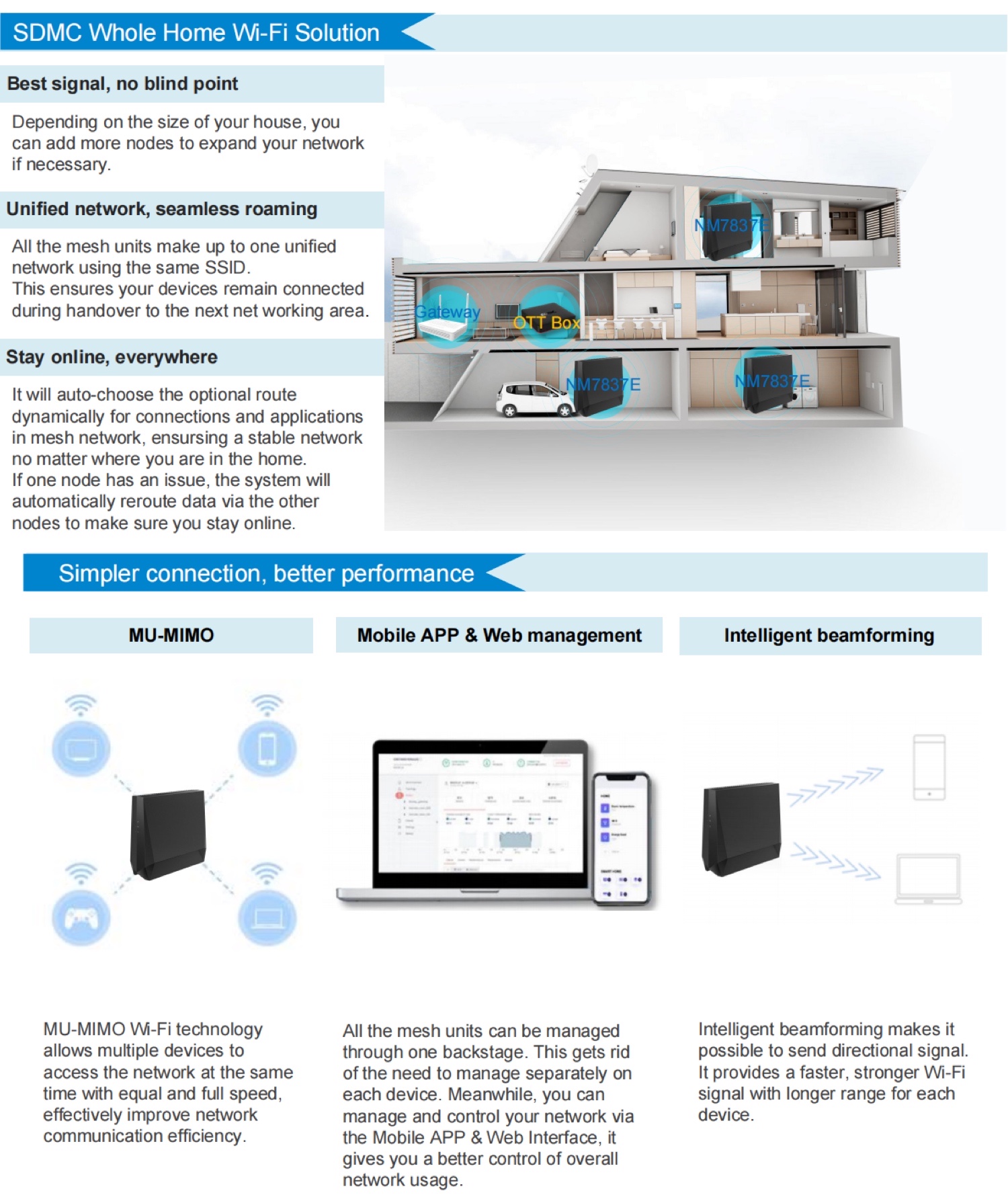

● Smart mesh networking
● Complies with IEEE802.11k/v/r
● EasyMesh is a scalable system , whole-home coverage and a consistently strong signal,without limited coverage or disconnection

● Dual-band OFDMA allowing for a higher density of simultaneous users
● Support MU-MIMO, simultaneous connection of multiple devices
Support WPA3, and the latest and most advanced Wi-Fi security protocol.
● Support WPS button, you can access to your home network more safely and easily
● Can use mobile App management to easily set up your Wi-Fi and manage the network
● 4800Mbps on 5GHz, 600Mbps on 2.4GHz and 2400Mbps on 6GHz band for total 7800Mbps simultaneously
● Using a centralized management backstage, you can easily manage all mesh grid nodes and set different network rules for devices accessing the network,such as guest network,parental controls,Qos

● Intelligent beamforming delivers highly targeted and efficient Wi-Fi connection
● Wireless roaming helps users auto switch to stronger signal source


Basic Features

SSID Broadcast

Support MU-MIMO


Tri coreA7 1.7GHz, DMIPS12600

Signal Rate

5GHz (4x4): Up to 4800Mbps

2.4GHz (2x2): Up to 600Mbps

6GHz( 2x2): Up to 2400Mbps

Wireless Security

WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE encryption



1 x 2.5Gbps WAN Port

3 x 10/100/1000 Mbps LAN Port

1 x USB3.0 Port

1 x DC Port


WPS/Mesh Button, RESET Button

Power Supply

DC 12V1.5A


8 x 3 dBi Internal antennas


PWR, Wi-Fi, WPS/Mesh




WAN Type

Dynamic IP/ Static IP/ PPPoE


Server, Client, DHCP Client List, Address Reservation


WMM, Bandwidth Control

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ, DDNS

Access Control

Parental Control, Local Management Control, Access Schedule, Black List

Firewall Security

DoS, IP Address Filter/MAC Address Filter/Website Filter, AP Isolation

Internet Protocol

IPv4, IPv6


Access Control, Local Management, Remote Management, APP, TR-069, Cloud Platform


IEEE802.11k/v/r, Network Topology, EasyMesh, Seamless Roaming


Guest Network, Timing Off, Multi - frequency integration, MU-MIMO, Hidden SSID, WPS

Device Management

Reboot, Restore Factory, Backup/Restore, Timing Reboot, Firmware Upgrade


CPU Utilization, CPU Temperature, Memory Utilization, Flow, Upload/Download Rate


NAT, Indicator switch, System Log, Speed Test, Channel analysis, Signal Power Regulation


Operating Temperature

0 ℃~40 ℃

Storage Temperature


Relative Humidity

10%~90%, non-condensing

Storage Humidity

5%~95%, non-condensing
