DV8304-IS 4K Android Hybrid Set-Top Boxes support HDR VP9


DV8304-IS is a high-performance Android Hybrid Box fully compliant with ISDB-T standard.
It is designed for ISPs, OTT operators and content aggregators that provide services based on
IPTV, OTT and VoD.

● Quad Core 64-bit CPU
● VP9, H.265 4K@60fps
● HDMI2.0b, CEC, HDCP2.2
● HDR 10 and HLG HDR processing
● OEM & ODM service
Contact Sales

DV8304-IS Quad Core 4K HD Android Hybrid Set-Top BoxesDV8304-IS Quad Core 4K HD Android Hybrid Set-Top BoxesDV8304-IS Quad Core 4K HD Android Hybrid Set-Top Boxes
DV8304-IS Quad Core 4K HD Android Hybrid Set-Top BoxesDV8304-IS Quad Core 4K HD Android Hybrid Set-Top Boxes
Basic parameters
System SoC: Amlogic S905D
CPU: ARM Quad 64-bit Cortex-A53 up to 1.5GHz(DVFS)
GPU: Penta Core Mali-450 up to 750MHz+(DFS)+
DRAM: DDR3 2GB
Flash: eMMC 8GB( 16GB, 32GB, 64GB Optional)
OS: Android TV
Network RJ45 Interface 10M/100M adaptive(10M/100M/1000M Optional)
Build in Wi-Fi 2.4GHz 802.11 b/g/n (5GHz Optional)
Bluetooth 4.0 (Optional)
Support most external 3G/4G USB dongle(Optional)
Tuner Frequency Range: (VHF) 177~ 214MHz, (UHF) 473~804MHz
Input Level:(64QAM)-83~ -10dBm, (16QAM)-89~ -10dBm
Input Impedance:75Ω
Demodulation: 6QAM, 64QAM, QPSK, DQPSK.
Connectivity
RF RF IN
Video Output HDMI2.0b, AV
Audio Output S/P DIF
Network  RJ45
Peripheral Interface USB2.0 x2, Micro SD card slot
Power Interface DC 5V,  Power Switch
Other Interface Front panel: IR receiver, LED indicator, Standby Key
Media
Video Decoder:
VP9 4K*2K@60fps, H.265 10-bit 4K*2K@60fps, H.264 AVC/MVC 4K*2K@30fps, AVS+, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
Format:
MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG, DAT, VOB, FLV, 3GP, DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG (AC3 Optional)
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Subtitle format SRT, ASS, SSA etc.
Photo format HD JPEG/BMP/PNG etc.
Features
Digital  TV Fully compliant with ISDB-T, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
4K Support VP9,4Kp60 HEVC Main-10 Decoding
Network streaming RTCP, RTMP, RTP, RTSP, HLS, Smooth streaming
Customization Support customized service
Remote manager TR069
Multi-screen interaction Miracast, DLNA, Airplay
Air Remote Can use the Android and iOS mobile phone to control
System upgrading Upgrade software via USB or network
Local media playback Video/Audio/picture
Games Android 2D/3D games
Others
Input voltage DC in 5/2A
Power consumption 8W Max
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H):  132mm*100mm*30mm
Material: plastic
Proposed Accessory Remote control and Battery, User manual, Power adapter, AV cable, HDMI cable


Why choose us?

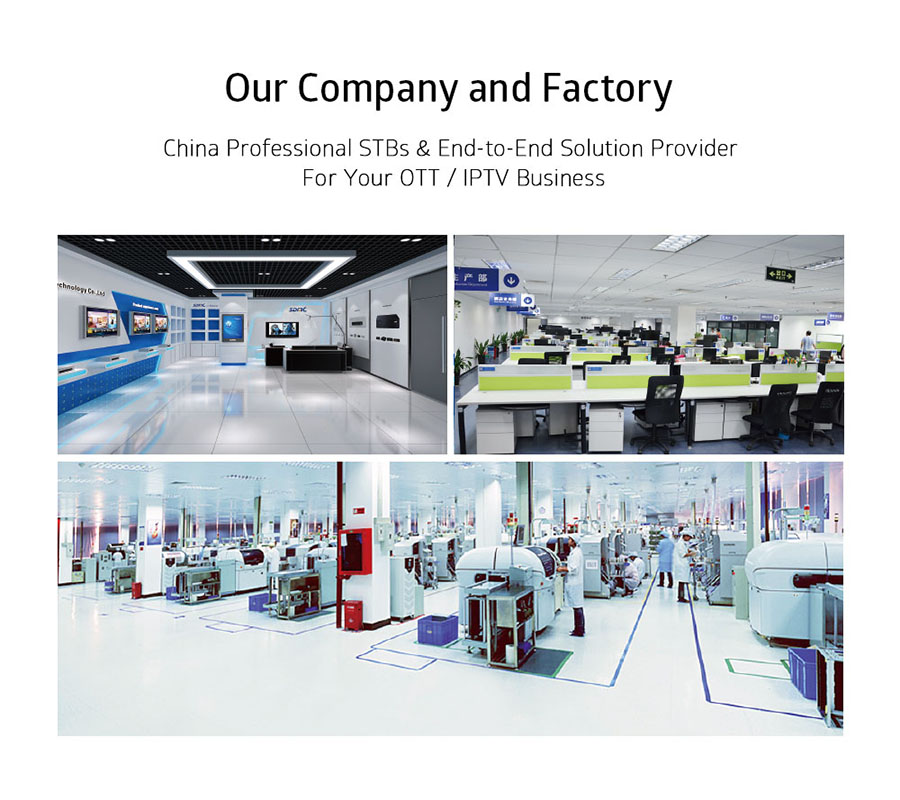

  • A public enterprise with 15 years' experiences in the industry of Digital TV and OTT/IPTV
  • 1-stop end-to-end ready cost-effective OTT TV solution & products
  • SDMC has our own DVB middleware and are being used for many broadcasters
  • SDMC’s XMediaTV platform could provide fast customization for operators
  • Rich experiences on Android TV and Netflix enable us affordable, available, and accessible to the operators’ market.
  • With more than 100 R&D engineers
  • Enjoy 100+ employee's 7*24 support service
  • More and more valued-added solutions to drive revenue growth
