DV8545-S2 HD Android TV DVB-S2 Hybrid Set-top Box Amlogic S905X2


DV8545-S2 is a 4K Amlogic S905X2 Android TV Hybrid Set-top Box with DVB-S / S2 tuner, support various cas like Verimatrix, Nagra, Irdeto etc
  • Netflix and Prime video preinstall
  • Upgrade software via USB or network
  • Air Remote: Can use the android and iOS mobile phone to control
  • Accesses 3rd party service from Google Assistant
  • Android 9.0 has a better compatibility of software, games and application programs.
  • Support thousands of Apps for the big screen with Google Play Store
  • Operators can customize the standard launcher for fast time-to-market

Contact Sales
Basic parameters
System SoC: Amlogic S905X2
CPU: ARM Quad 64-bit Cortex-A53 up to 2GHz
(DVFS)
GPU: Mali-G31 MP2 850MHz
DRAM: DDR 2GB  (4GB Optional )
Flash: eMMC 8GB (16GB, 32GB, 64GB)Optional
OS: Android™ 9.0 or higher
Network RJ45 Interface 10M/100M adaptive 10M/100M/1000Moptional
 Wi-Fi 2.4GHz  b/g/n  (2.4GHz/5.0GHz)Optional
Bluetooth 4.2 or higher
Tuner Frequency Range: 950~2150MHZ
Demodulation:  QPSK, 8PSK 1/2, 2/3, 3/4,5/6, 7/8
Input Level:  -65~-25dBm
Input impedance: 75Ω
Symbol Rates:1-55Msps
LNB input connetcor: IEC TYPE F
LNB Power & Polarization: Vertical 13V, Horizontal 18V, max 500mA
Connectivity
RF RF IN
AV Output HDMI2.1, AV
Network  RJ45
Peripheral Interface USB3.0*1,USB2.0*1
Power Interface DC IN 12V
Other Interface Front panel:Standby key, IR receiver, IR/Power/Net LED indicator
Media
Video Decoder:
H.265 10-bit 4K*2K@75fps,VP9 4K*2K @75fps, AVS2-P2 4K*2K@75fps,  H.264 AVC 4K*2K@30fps, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
Format:
MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG1/2/4, DAT, VOB, FLV, 3GP, DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG1/2/4,MVC, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG, AC3
Optional
Format:
MP3, AAC, WMA, RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Subtitle format SRT, ASS, SSA etc.
Photo format HD JPEG/BMP/PNG etc.
Features
Power consumption Ultra Low power
Digital  TV Fully compliant with DVB-S/S2, 7 days EPG, USB PVR, Timeshift,
Program playback, Timing playing
DRM Playready, Widevine, Verimatrix, Nagra, Irdeto;
4K 4Kp75 10-bit H.265; 4Kp75 VP9 Profile2;4Kp75 AVS2; 4Kp30 H.264
HDR Support HDR 10,HLG,TCH PRIME,Dolby VisionOptional
GL ES Support OpenGL ES3.2,Vulkan1.0 and OpenCL2.0
Video Output HDMI2.1, CEC, HDCP2.2
Network streaming RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
customization Support customized service
Air Remote Can using the android and iOS mobile phone to control
System upgrading Upgrade software via USB or network
Local media playback Video/Audio/Picture
Games Android 2D/3D games
Others
Input voltage DC 12V/1.5A
Power consumption 17W Max
Operation temperature 0~40
Physical characteristics  Size(L*W*H):120mm*120mm*30mm
Material: plastic
Proposed Accessory Remote control and Battery, User manual, Power adapter,  HDMI cable

Why choose us?

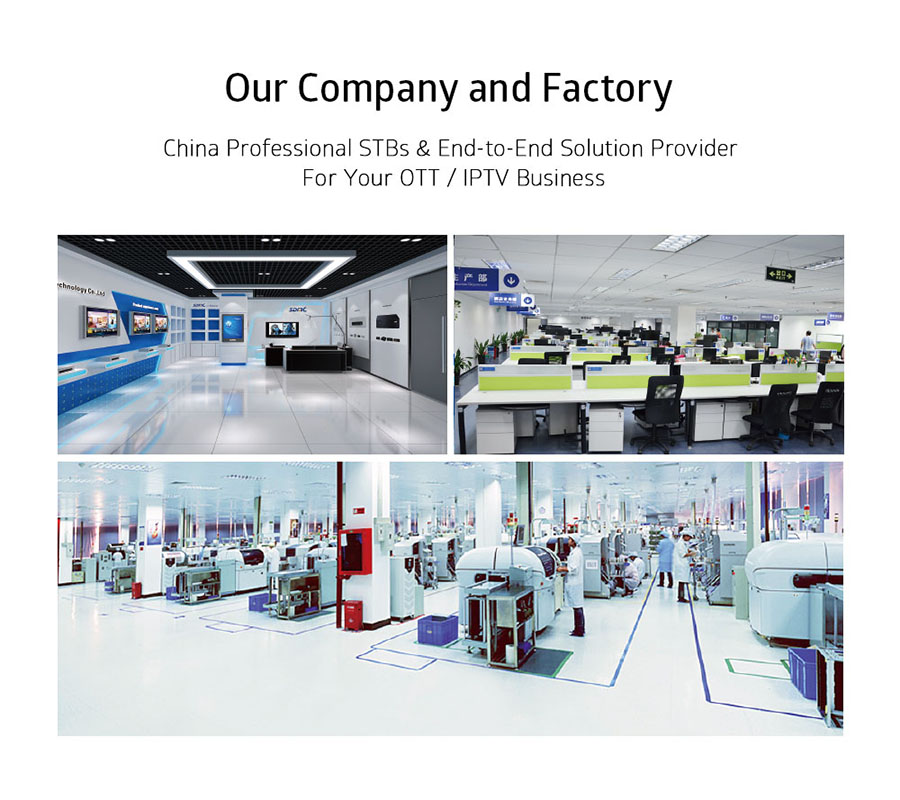

  • A public enterprise with 16 years' experiences in the industry of Digital TV and OTT/IPTV
  • 1-stop end-to-end ready cost-effective OTT TV solution & products
  • SDMC has our own DVB middleware and are being used for many broadcasters
  • SDMC’s XMediaTV platform could provide fast customization for operators
  • Rich experiences on Android TV and Netflix enable us affordable, available, and accessible to the operators’ market.
  • With more than 100 R&D engineers
  • Enjoy 100+ employee's 7*24 support service
  • More and more valued-added solutions to drive revenue growth
