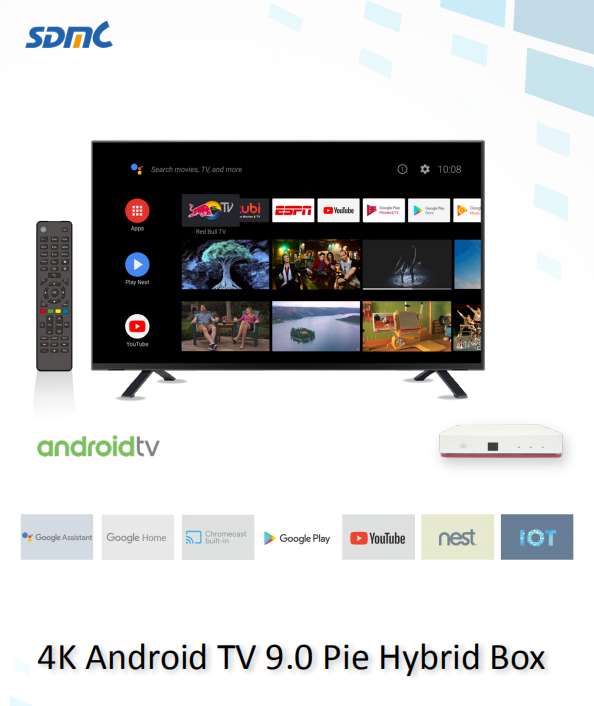

DV8545-C 4K Android TV OTT DVB-C STB with Amlogic S905X2 processor

DV8545-C is a 4K HDR OTT+DVB Hybrid Set Top Box which is fully compliant with HD DVB-C, 7days EPG, USB PVR, Timeshift, Programe playback, Timing playing.

· Automatically fill in passwords
· App discovery as part of Setup
· Quick access to what you need
· Chromecast and Google Assistant built-in
· Faster & easier, with better mobile support
· Ultra security Playready and Widevine DRM
· Endless original content from Google Play Movies
· Short time to market, rapid innovations of features
· Google Play Store with revenue share opportunities
· Prioritizes operator content, channels, and recommendations
Contact Sales
Basic parameters
System SoC: Amlogic S905X2
CPU: ARM Quad 64-bit Cortex-A53 up to 2GHz  (DVFS)
GPU: Mali-G31 MP2 850MHz
DRAM: DDR 2GB  (1GB, 4GB Optional )
Flash: eMMC 8GB (16GB, 32GB, 64GB Optional )
OS: Android™ 9.0 or higher
Network RJ45 Interface 10M/100M adaptive (10M/100M/1000M optional)
Wi-Fi 2.4GHz/5.0GHz  a/b/g/n/ac  (2.4GHz Optional)
Bluetooth 4.2 or higher
Tuner Frequency Range: 111~862MHz
Frequency Band: 8MHz
Input Level:  (64QAM)40~80dBμV, (256QAM)44~80dBμV
Input impedance: 75Ω
Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Connetcivity
RF RF IN
Video Output HDMI2.1, AV
Audio Output S/P DIF
Network  RJ45
Peripheral Interface USB3.0*1,USB2.0*1
Power Interface DC 5V, Power switch
Other Interface Front panel: IR receiver, IR/Power/Net LED indicator
Rear Panel: IR in
Media
Video Decoder:
H.265 10-bit 4K*2K@75fps,VP9 4K*2K @75fps, AVS2-P2 4K*2K@75fps,  H.264 AVC 4K*2K@30fps, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
Format:
MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG1/2/4, DAT, VOB, FLV, 3GP, DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG1/2/4,MVC, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG, (AC3 ,Dolby Vision Optional)
Format:
MP3, AAC, WMA, RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Subtitle format SRT, ASS, SSA etc.
Photo format HD JPEG/BMP/PNG etc.
Features
Power consumption Ultra Low power
Digital  TV Fully compliant with DVB-C, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
DRM Playready, Widevine; Verimatrix(Optional)
4K 4Kp75 10-bit H.265; 4Kp75 VP9 Profile2;4Kp75 AVS2; 4Kp30 H.264
HDR Support HDR 10,HLG,Dolby Vision,TCH PRIME(Optional)
GL ES Support OpenGL ES3.2,Vulkan1.0 and OpenCL2.0
Video Output HDMI2.1, CEC, HDCP2.2
Network streaming RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
customization Support customized service
Air Remote Can use the android and iOS mobile phone to control
System upgrading Upgrade software via USB or network
Local media playback Video/Audio/Picture
Games Android 2D/3D games
Others
Input voltage DC 5V/2A
Power consumption 8W Max
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H):120mm*120mm*28mm
Material: plastic
