DV9004-C OTT / IPTV DVB-C HD Android Hybrid TV Box

DV9004-C is a high-performance OTT DVB-C hybrid tv box powered by Quad 64-bit Cortex-A53 CPU.The hybrid DVB-C solution for OTT and DVB operators

● Quad-core ARM Cortex-A53
● 1080p60 H.264 and 10-bit H.265/VP9
● DRM: Widevine, Playready; Verimatrix (Optional)
● System upgrading:Upgrade software via network or USB
● Air Remote:Can use the android and iOS mobile phone to control
● Streaming Protocol: RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
● Fully compliant with DVB-C, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing

Contact Sales

Description
Specification

Android TV Operator Tier Launcher

VB-C Android Hybrid TV Box

Basic parameters
System	SoC: Amlogic S805Y
	CPU: Quad core ARM Cortex-A53 up to 1.5GHZ(DVFS)
	GPU: Penta Core Mali-450 up to 650MHz+(DFS)
	DRAM: DDR 1GB (2G)Optional
	Flash: eMMC 8GB (16GB, 32GB, 64GB)Optional
	OS: Android 10 or higher
	HDR: HDR 10,HLG HDR
	Graphic Subsystem: OpenGL ES 1.1/2.0 and OpenVG 1.1
	DRM: Widevine, Playready; VerimatrixOptional
	HDMI 2.0b, CEC, HDCP2.2
Media	Video Decoder: VP9 Profile-2 1080p@60fps,H.265 HEVC 10-bit 1080p@60fps, H.264 1080p@60fps, MPEG1/2/4 ,AVS+ , WMV/VC-1, RealVideo8/9/10 etc.
	Format: MKV, WMV Optional, MPG, MPEG, DAT, ISO, MP4, RM, JPG etc.
	Decoder: MPEG1/2, MP3, AAC/AAC+, WMA/WMA-proOptional, FLAC, OGG, AC3Optional
	Format: MP3, AAC, WMA Optional, RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
	Subtitle format:SRT, ASS, SSA etc.
	Photo format:HD JPEG/BMP/PNG etc.
Network	RJ45 Interface 10M/100M adaptive
	Wi-Fi 2.4GHz 802.11 b/g/n (2.4GHz/5.0GHz)Optional
	Bluetooth 4.2 or higher
Tuner	Frequency Range: 111~862MHz
	Frequency Band: 8MHz
	Input Level: (64QAM)40~80dBμV, (256QAM)44~80dBμV
	Input impedance: 75Ω
	Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Connectivity	RF:RF IN
	Video output:HDMI 2.0b, AV
	Audio output： S/P DIF
	Network:RJ45
	Peripheral interface:2*USB 2.0
	Power interface:DC IN ,standby button
	Front panel: Power LED indicator
Others
Input voltage	DC in 5V/2A
Power consumption	10W Max
Operation temperature	0~40℃
Physical characteristics	Size(LWH):132mm100mm30mm
	Material: plastic
Proposed Accessory	Bluetooth Voice Remote control, User manual, Power adapter, HDMI cable

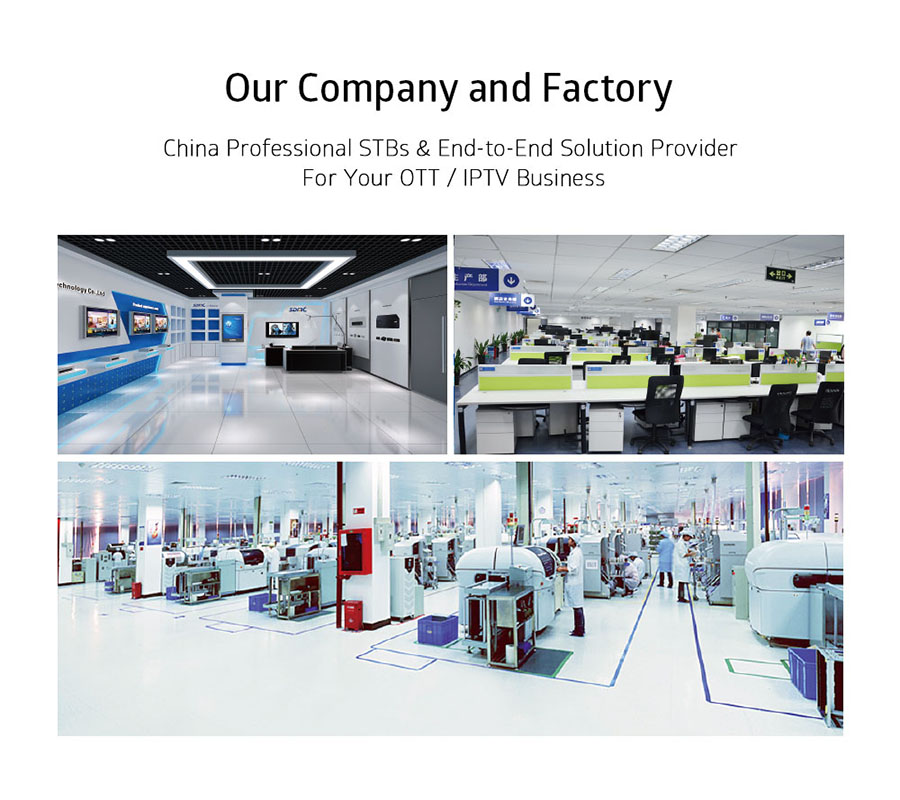

SDMC is committed to providing the leading solutions of Digital Video, Smart Connection, and Cloud Services for Operators.
