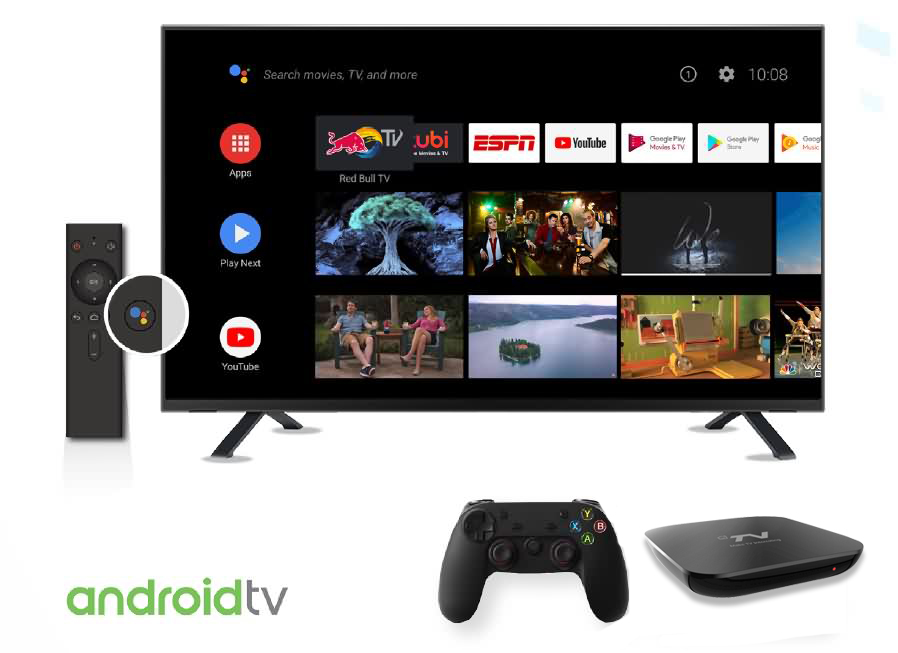

DV8555 is Ultra Low power Android 10.0 Smart TV Box, support Google Assistant Bluetooth Voice Control, the android tv solution specially designed for operators, ISP, wholesalers, brand owners, etc.
● Air Remote: Can use the android and iOS mobile phone to control
● System upgrading: Upgrade software via USB or network
● Streaming Protocol: RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
● Built in lots of content and entertainment, such as Netflix, YouTube, Play Movies & TV, Google Play Music, etc.
● Support thousands of Apps for the big screen with Google Play Store
● Official Android TV OS has a better compatibility of software, games and application programs
● Provides maintenance-free Android TV Platform and cost-saving solution to operators
● Short time to market, rapid innovations of features, bring ultimate TV watching experience
● SDMC’s XMediaTV platform could provide fast customization for operators
Contact Sales
● Air Remote: Can use the android and iOS mobile phone to control
● System upgrading: Upgrade software via USB or network
● Streaming Protocol: RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
● Built in lots of content and entertainment, such as Netflix, YouTube, Play Movies & TV, Google Play Music, etc.
● Support thousands of Apps for the big screen with Google Play Store
● Official Android TV OS has a better compatibility of software, games and application programs
● Provides maintenance-free Android TV Platform and cost-saving solution to operators
● Short time to market, rapid innovations of features, bring ultimate TV watching experience
● SDMC’s XMediaTV platform could provide fast customization for operators
Android 10.0 Smart TV Box Software Highlights
DV8555 is a 4K HDR OTT Android TV OTT Box powered by Amlogic S905X2 proccessor, with rapid innovationsof features and functionality.
It provides maintenance-free Android TV platform and cost-saving solution for customers.
Endless content and apps
Easy access to endless original content from Android ecosystem, including Netflix, Amazon Prime Video, YouTube, Sling and Hulu, etc.

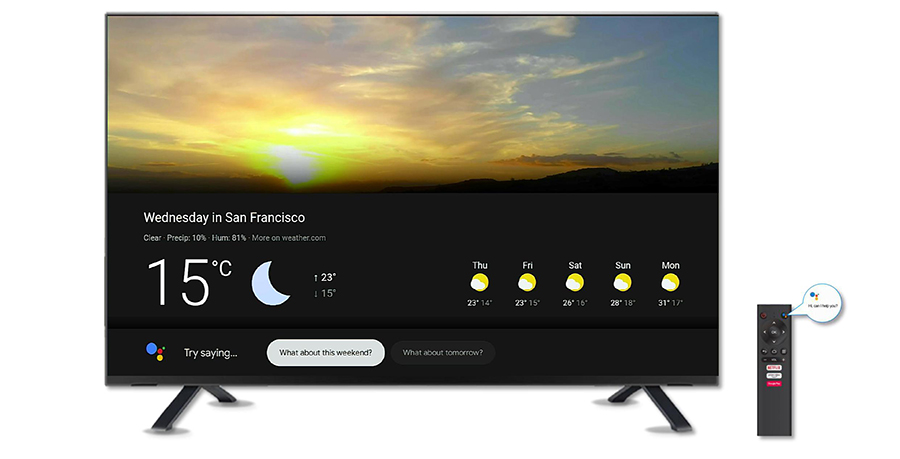

Google Assistant Built-in
Just press the mic button on the remote to get what you want, such as playing the content, controlling home devices ,etc.
Chromecast Built in
You can quickly cast photos, videos, music and more from your phone, tablet or PC to your TV.
Android gaming on the big screen
Visual details and stunning 3D graphics come to life on the biggest screen in your home.
Support Android TV Operator Tier Launcher
Focusing on operator's main business goal, content operation and revenue growth, we can provide our excellent Android TV launcher
to help operators get successful business. Contact us to customize your Android TV Launcher!
Focusing on operator's main business goal, content operation and revenue growth, we can provide our excellent Android TV launcher
to help operators get successful business. Contact us to customize your Android TV Launcher!
Google, Google Play, YouTube, Android TV, Chromecast and other related marks and logos are trademarks of Google LLC
| Basic parameters | ||
| System | SoC: Amlogic S905X2 | |
|
CPU: ARM
Quad 64-bit Cortex-A53 up to 2GHz (DVFS) |
||
| GPU: Mali-G31 MP2 850MHz | ||
| DRAM: DDR 2GB | ||
| Flash: eMMC 8GB | ||
| OS: Android™ 9.0 or higher | ||
| HDR: HDR 10,HLG,PRIME HDR, Dolby Vision | ||
| Graphic Subsystem:OpenGL ES3.2,Vulkan1.0 and OpenCL2.0 | ||
| DRM:Widevine, Playready | ||
| Support HDMI 2.1, CEC, HDCP2.2 | ||
| Media |
Video Decoder: H.265 HEVC Mp-10 4K*2K@60fps,VP9 4K*2K @60fps, AVS2-P2 4K*2K@60fps, H.264 AVC 4K*2K@30fps, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10 |
|
|
Video
Format: MKV, WMV(Optional), MPG,MPEG,DAT,AVI,MOV,ISO,MP4,RM,JPG etc. |
||
|
Audio
Decoder: MPEG1/2,MP3, AAC/AAC+, WMA/WMA-pro(Optional), FLAC, OGG,AC3 |
||
|
Audio Format: MP3, AAC, WMA(Optional), RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc. |
||
| Subtitle format:SRT, ASS, SSA etc. | ||
| Photo format:HD JPEG/BMP/PNG etc. | ||
| Network | RJ45 Interface 10M/100M adaptive | |
| 2*2MIMO 2.4GHz/5.0GHz 802.11 a/b/g/n/ac | ||
| Bluetooth 4.2 or higher | ||
| Connectivity | Video output:HDMI 2.1, AV | |
| Audio output: S/P DIF | ||
| Network:RJ45 | ||
| Peripheral interface:USB 3.0x1 | ||
| Power interface:DC 5V ,Power standby key | ||
| Other interface:Power indicator | ||
| Others | ||
| Input voltage | DC in 5V/2A | |
| Power consumption | 10W Max | |
| Operation temperature | 0~40℃ | |
| Physical characteristics | Size(L*W*H): 135mm*135mm*27mm | |
|
Material: plastic |
||
| Proposed Accessory | Bluetooth Voice Remote control, User manual, Power adapter, HDMI cable | |
- 17 years' experience in the industry of Digital TV and OTT/IPTV
- Developed and designed Amlogic Android products since 2011 based on Android 2.0
- Top 5 in Google's Android TV pipelines
- More than 100 Android TV projects
- Only 2 weeks to pass the Netflix hailstorm certification without operator's tier
- Own DVB middleware is being used for many broadcasters
- SDMC's XMediaTV OTT platform provides fast customization for operators
- Factory partners with India, Thailand, Indonesia, Vietnam, Brazil to avoid high tax
