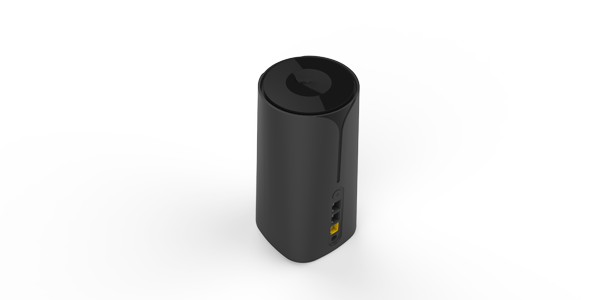

DR3100FX 5G CPE Router

● Built-in Qualcomm™ SDX55 modem, it has best 5G mobile network performance
● Full Compliant with IEEE and WFA 802.11ax
● Full Compliant with Wi-Fi Alliance Multi-AP EasyMesh
● 5G Network Modes: SA (standalone), NSA (non-standalone)
● 5G Bands: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
● Mobile 4G/5G Connection (Support APN)
● 5G SA Transmission Speed:3.3Gbps/250Mbps (up to ISPs)
● 5G NSA Transmission Speed:3.4Gbps/200Mbps (up to ISPs)
● built-in 6 pcs high performance antennas with 6 pcs external FEM components

Contact Sales








Basic parameters
System 5G Moduel: Qualcomm® Snapdragon™ X55 Modem-RF System
Chipset: IPQ8071A+QCA5024+QCA5054+QCA8081
DRAM: DDR3 256MB
Flash: 256MB
LAN Ports 1 2.5G WAN/LAN, 1 GE WAN/LAN, 1GE LAN, 1 NANO-SIM Slot
Wi-Fi Standard:

Wi-Fi 2.4GHz/5.0GHz 802.11a/b/g/n/ac/ax
Antenna:

  6xHigh-Gain Antenna MU-MIMO Wi-Fi ,4x4 (5 GHz) 2x2 (2.4 GHz
Transmit power
  Max EIRP 2,4 GHz +30dBm , Max EIRP 5GHz up to +30dBm
Data Throughput:

5G up to 24750Mbps
 2.4G up to 600Mbps
Connectivity RJ45 x2,DC in
Button: mesh button, Reset, LED on/off
Power LED; Wi-Fi Status, 2.4GHz, 5GHz, mesh working status(breathing light)
Other Input voltage: DC in 12V/3A
Power consumption: 23W Max
Operation temperature:0~40℃
Humidity: 0-95%
Size(L*W*H): 108mm*108mm*216mm
Material: plastic
Proposed Accessory:Ethernet cable,User manual, Power adapter

  • 18 years' experience in the industry of Digital TV and OTT/IPTV
  • Developed and designed Amlogic Android products since 2011 based on Android 2.0
  • Top 5 in Google's Android TV pipelines
  • More than 100 Android TV projects
  • Only 2 weeks to pass the Netflix hailstorm certification without operator's tier
  • Own DVB middleware is being used for many broadcasters
  • SDMC's XMediaTV OTT platform provides fast customization for operators
  • Factory partners with India, Thailand, Indonesia, Vietnam, Brazil to avoid high tax
