SDMC DV6507-IS OTT+ISDB-T Set Top Box For Brazil
- 08 Jun 2015
- 1213 Read
Which country can apply ISDB-T set-top boxes? Which country gives birth to ISDB-T digital TV standard? Is there any SDMC set top boxes that can receive ISDB-T digital TV standards? The following content can explain the above questions in detail.
The Integrated Services Digital Broadcasting (ISDB) is a Japanese standard for digital television (DTV) and digital radio used by the country's radio and Television networks. ISDB replaced the previously used MUSE Hi-vision analogue HDTV system. Digital Terrestrial Television Broadcasting (DTTB) services using ISDB-T started in Japan in December 2003 and in Brazil in December 2007 as a trial. Since many countries have adopted ISDB over other digital broadcasting standards.
And now the overseas digital TV standard promotion situation is Europe second generation DVB-T2 standard obtained wide publicity and promotion from International Broadcasting Union and Asian Broadcasting Union. At the same time, DVB starts "the DVB-T2 standard enclosure" movement globally, and keen to promote a global standard publicity and discussion. It makes full use of the rapid development of China, national resources and product development capabilities to improve the market competitiveness of DVB-T2 and promote the third world countries to adapt DVB-T2.
As Japanese ISDB-T uses Brazil standard to penetrate the South American market via diplomatic channels, meanwhile, Shinzo Abe, Japanese prime minister, visited Philippines and Sri Lanka and convinced them to use ISDB-T instead of DVB-T2 through economic assistance.
Because of high technology content, ATSC has been preferred to develop in North America.
DV6507-IS is an ISDB-T set-top box from Shenzhen SDMC Technology Co., Ltd. It is OTT+ ISDB-T set-top box, Android TV box, Android smart play box, Android network box, Android media player box with built-in ISDB-T receiving module, supports full HD ISDB-T standard, 7 days electronic program guide, USB recording and time shift, playback, booking playing etc.
SDMC DV6507-IS configuration:
1GHz ARM A9 processor frequency,
Mali-400 MP GPU,
MLC 4GB FLASH storage
Android 4.X version OS

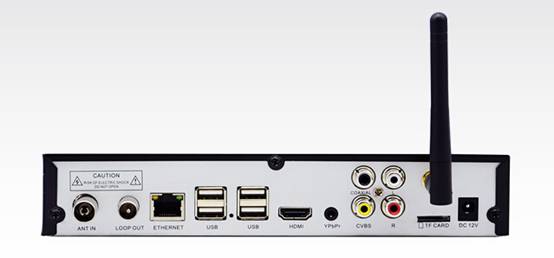

The picture above is rear photo of SDMC DV6507-IS set-top box, as it shows, the ISDB-T set-top box interface is very rich. Including the HDMI 1.4 interface, TF card interface, RJ45 Ethernet interface, composite audio and video output, 3.5mm YPbPr video output, coaxial output interface and 4x USB2.0, infrared remote control interface, Wi Fi antenna, antenna input/output interface, and power supply adapter interface.
