Wi-Fi 7 Mesh Router

Unveiling NR19X93BE, a high-performance Wi-Fi 7 mesh router delivering equal and full-speed network access to multiple devices simultaneously through MU-MIMO support. Designed for superior stability and multi-device connections, it enhances your digital experience.

Smart Mesh: Enhances IoT network reliability, scalability, power efficiency, and security.
Standard Compliance: Abides by IEEE802.11k/v/r specifications.

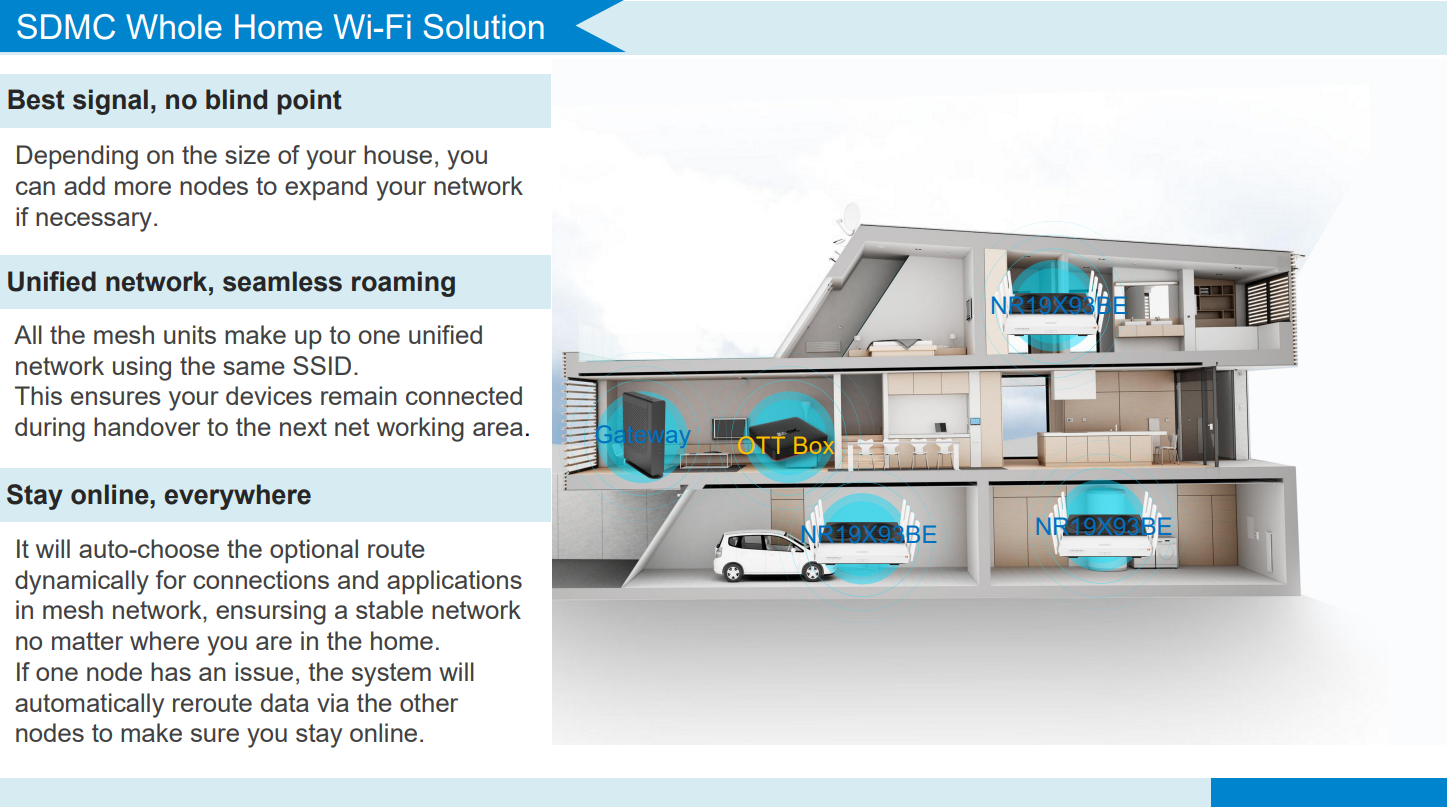

EasyMesh: Provides scalable, whole-home coverage with a consistently robust signal.
Instant Connectivity: Connect without DFS delays.
Dual-Band OFDMA: Supports a higher density of concurrent users.
MU-MIMO: Facilitates simultaneous connections across multiple devices.
Tri-Band Support: Offers aggregation backhaul.
Advanced Security: Features WPA3, the latest Wi-Fi security protocol.
WPS Button: Promotes safer and easier access to your home network.
App Management: Enables effortless Wi-Fi setup and network management through a mobile app.

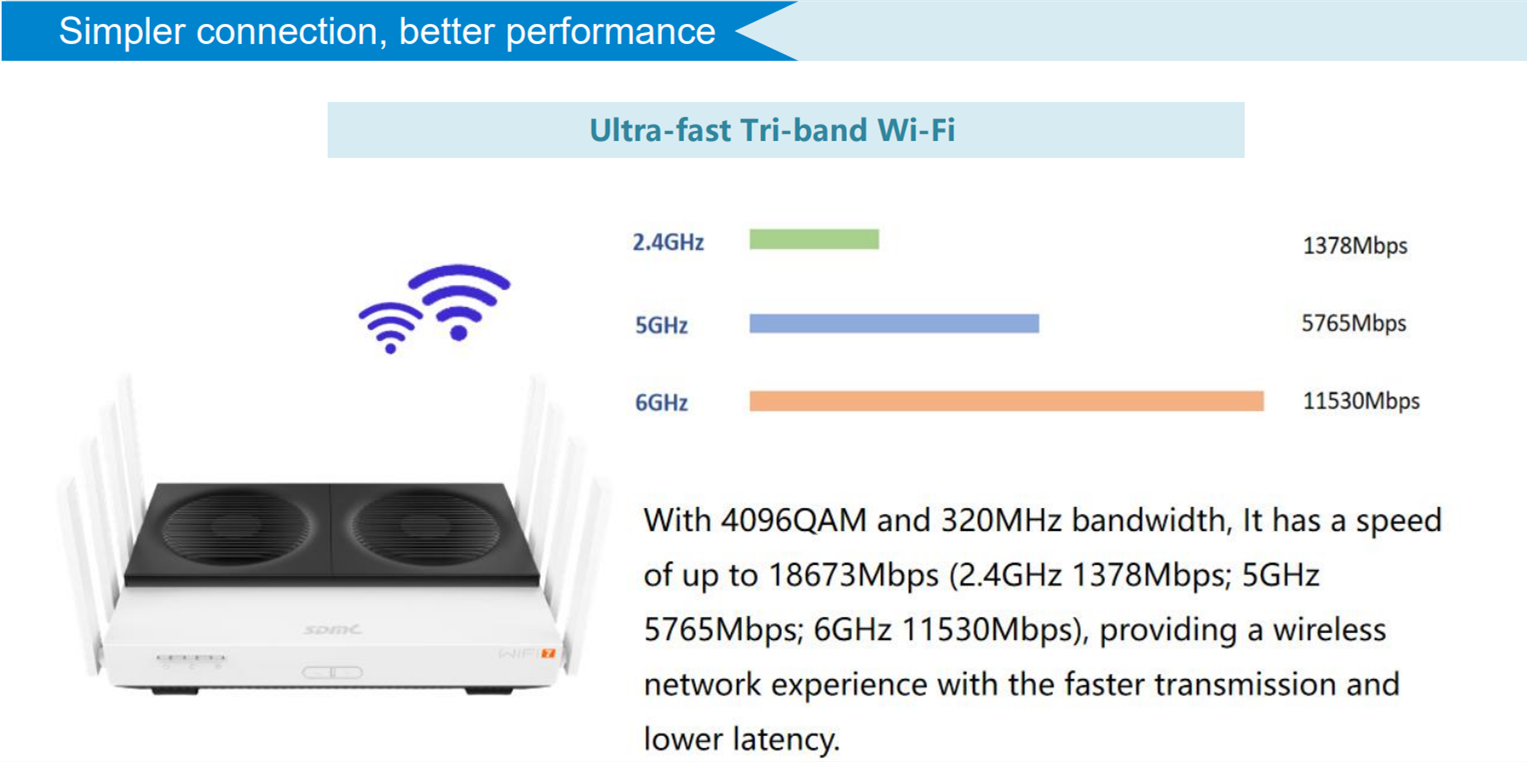

Ultra-High Speed: Delivers 11530Mbps on 6GHz, 5765Mbps on 5GHz, and 1378Mbps on 2.4GHz band, amounting to 19000Mbps total.
Centralized Management: Allows for effortless regulation of all mesh nodes and distinct network rules for accessing devices, like guest network, parental controls, QoS.
Intelligent Beamforming: Ensures highly focused and efficient Wi-Fi connection.
Wireless Roaming: Auto-switches users to the strongest signal source.

Contact Sales

Description
Specification

BASIC PARAMETERS	CPU	Quad A53 ARMv8 @ 2.6GHz, DIMPS 24K
	Signal Rate	2.4GHz (4x4): 1378Mbps, 5GHz (4x4): 5765Mbps, 6GHz (4x4): 11530Mbps
	Wireless Security	WPA2-PSK, WPA3-SAE, WPA2-PSK/WPA3-SAE encryption

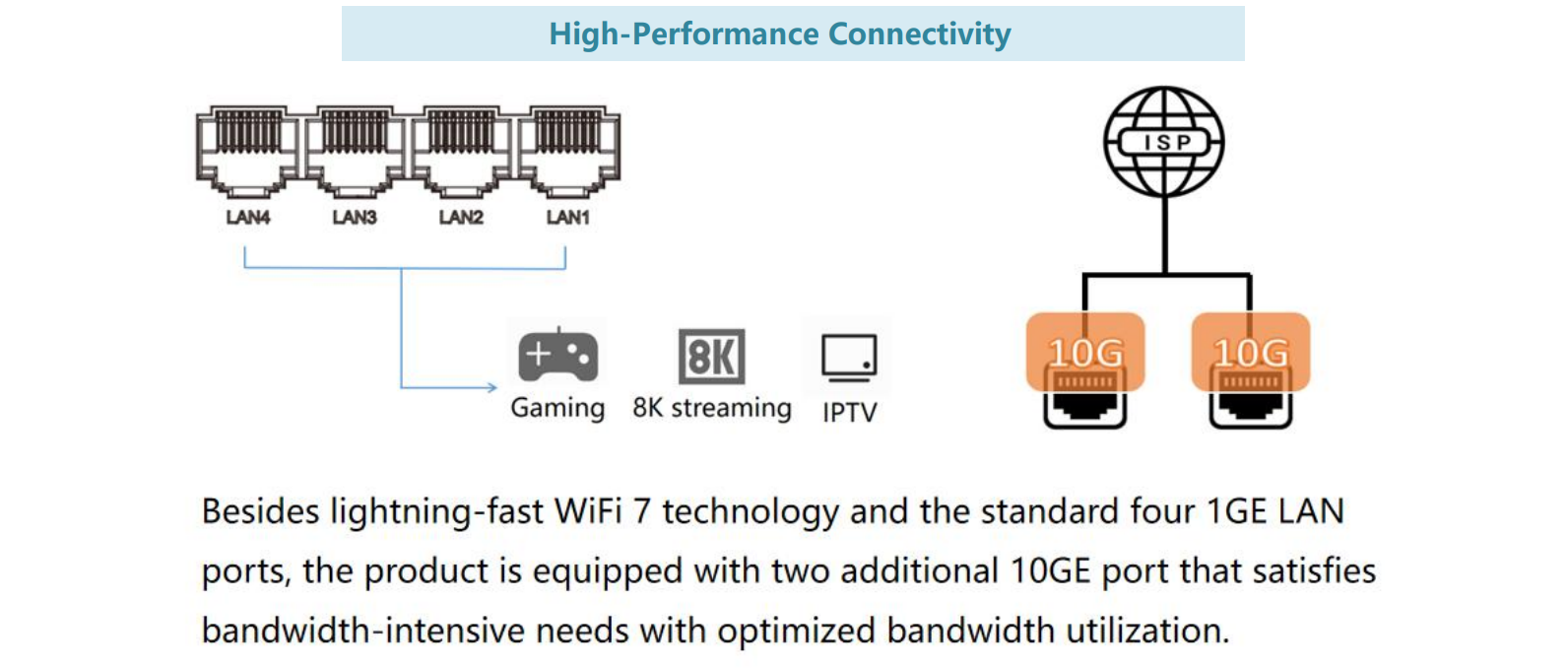

HARDWARE	Interface	2 x 10GE Port 4 x GE Port 1 x DC Port 1 x USB 3.0 Type C 1 x USB 2.0 Type A
	Button	Reset, ON/OFF, WPS
	Power Supply	DC 12V3A
	Antenna	8 x 5 dBi External Antennas
	LED	Power, WPS, WiFi
	Dimensions	300mm219mm60mm(WDH)
SOFTWARE	WAN Type	Dynamic IP/ Static IP/ PPPoE
	DHCP	Server, Client, DHCP Client List, Address Reservation
	QoS	WMM, Bandwidth Control
	Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ, DDNS
	Access Control	Parental Control, Local Management Control, Access Schedule, Black List
	Firewall Security	DoS, IP Address Filter/MAC Address Filter/Website Filter, AP Isolation
	Internet Protocol	IPv4, IPv6
	Management	Access Control, Local Management, Remote Management, APP, TR-069, Cloud Platform
	Mesh	IEEE802.11k/v/r, Network Topology, EasyMesh, Seamless Roaming
	Wireless	Guest Network, Multi - frequency integration, MU-MIMO, Hidden SSID, WPS
	Device Management	Reboot, Restore Factory, Backup/Restore, Firmware Upgrade
	Monitoring	CPU Utilization, CPU Temperature, Memory Utilization, Flow, Upload/Download Rate
	Other	NAT, Indicator switch, System Log, Speed Test, Channel analysis, Signal Power Regulation
ENVIRONMENT	Operating Temperature	0 ℃~40 ℃
	Storage Temperature	-40°C~70°C
	Relative Humidity	10%~90%, non-condensing
	Storage Humidity	5%~95%, non-condensing
