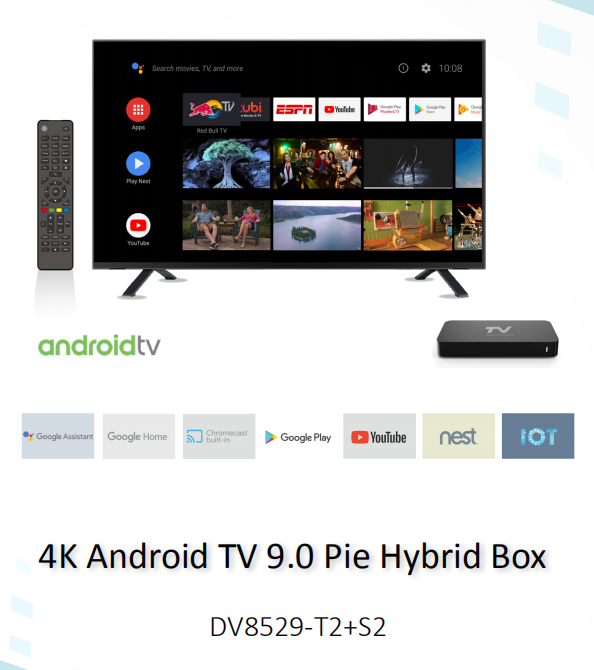

DV8529-T2 4K Android TV Hybrid STB with Amlogic S905X2 processor

DV8529-T2 is a 4K HDR Android TV os Hybrid Box which is fully compliant with HD DVB-T2, 7days EPG, USB PVR, Timeshift, Programe playback, Timing playing.
Hybrid STB enables an outstanding viewing experience, encompassing Live broadcast with OTT.

· Chromecast and Google Assistant built-in
· Faster & easier, with better mobile support
· Ultra security Playready and Widevine DRM
· Endless original content from Google Play Movies
· Short time to market, rapid innovations of features
· Google Play Store with revenue share opportunities
· Prioritizes operator content, channels, and recommendations
Contact Sales

DV8529-T2 4K Android TV Hybrid STB with Amlogic S905X2 processor
Endless content and apps

With Android TV you can support both broadcast and OTT services.With thousands of apps in the google play store and more getting added
daily. Your consumers will have plenty of choices on your Android TV platform

Google Assistant Built-in

Just press the mic button on the remote to get what you want, such as playing the content, controlling home devices ,etc.

Android tv box google assistant

Chromecast Built in

You can quickly cast photos, videos, music and more from your phone, tablet or PC to your TV.

Android tv box chromecast

Google, Google Play, YouTube, Android TV, Chromecast and other related marks and logos are trademarks of Google LLC
Basic parameters
System SoC: Amlogic S905X2
CPU: ARM Quad 64-bit Cortex-A53 up to 2GHz  (DVFS)
GPU: Mali-G31 MP2 850MHz
DRAM: DDR4 2GB  (1GB, 4GB Optional )
Flash: eMMC 8GB (16GB, 32GB, 64GB Optional )
OS: Android™ 9.0 or higher
Network RJ45 Interface 10M/100M adaptive (10M/100M/1000M optional)
Wi-Fi 2.4GHz/5.0GHz  a/b/g/n/ac  (2.4GHz  Optional)
Bluetooth 5.0 or higher
Tuner Frequency range: (UHF)474MHz~2150MHZ
Input level: Level -85dBm~-20dBm
Input impedance: 75Ω
Symbol Rates:1-55Msps
LNB input connetcor: IEC or F
LNB Power & Polarization: Vertical 13V, Horizontal 18V, max 500mA
Demodulation:QPSK,16QAM,64QAM,256QAM, 8PSK 1/2, 2/3, 3/4,5/6, 7/8
Video Output HDMI2.1, AV
Network  RJ45
Peripheral Interface USB3.0*1,USB2.0*1
Power Interface DC 12V, Power switch
Other Interface Front panel: IR receiver, Power LED indicator
Video Decoder:
H.265 10-bit 4K*2K@75fps,VP9 4K*2K @75fps, AVS2-P2 4K*2K@75fps,  H.264 AVC 4K*2K@30fps, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG1/2/4, DAT, VOB, FLV, 3GP, DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG1/2/4,MVC, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG, (AC3 Optional)
MP3, AAC, WMA, RM, FLAC, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Subtitle format SRT, ASS, SSA etc.
Photo format HD JPEG/BMP/PNG etc.
Power consumption Ultra Low power
Digital  TV Fully compliant with DVB-T2/S2, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
DRM Widevine, Playready; Verimatrix;Irdeto; Nagra TKL (Optional)
4K 4Kp75 10-bit H.265; 4Kp75 VP9 Profile2;4Kp75 AVS2; 4Kp30 H.264
HDR Support HDR 10,HLG,Dolby Vision,TCH PRIME(Optional)
GL ES Support OpenGL ES3.2,Vulkan1.0 and OpenCL2.0
Video Output HDMI2.1, CEC, HDCP2.2
Network streaming RTCP, RTMP, RTP, RTSP,UDP, HTTP, DASH, HLS, Smooth streaming
customization Support customized service
Air Remote Can use the android and iOS mobile phone to control
System upgrading Upgrade software via USB or network
Local media playback Video/Audio/Picture
Games Android 2D/3D games
Input voltage DC 12V/1.2A
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H):170mm*75mm*23.5mm
Material: plastic
Proposed Accessory Remote control and Battery, User manual, Power adapter, AV cable, HDMI cable

Why choose us?
  • A public enterprise with 17 years' experiences in the industry of Digital TV and OTT/IPTV
  • 1-stop end-to-end ready cost-effective OTT TV solution & products
  • SDMC has our own DVB middleware and are being used for many broadcasters
  • SDMC’s XMediaTV platform could provide fast customization for operators
  • Rich experiences on Android TV and Netflix enable us affordable, available, and accessible to the operators’ market.
  • With more than 100 R&D engineers
  • Enjoy 100+ employee's 7*24 support service
  • More and more valued-added solutions to drive revenue growth
