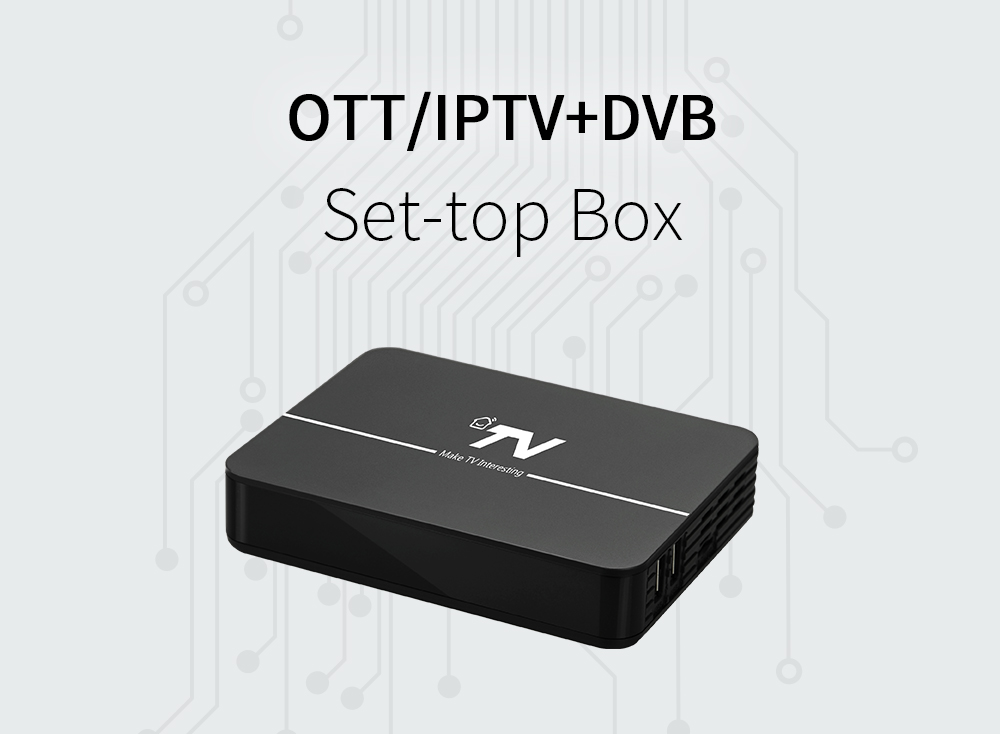

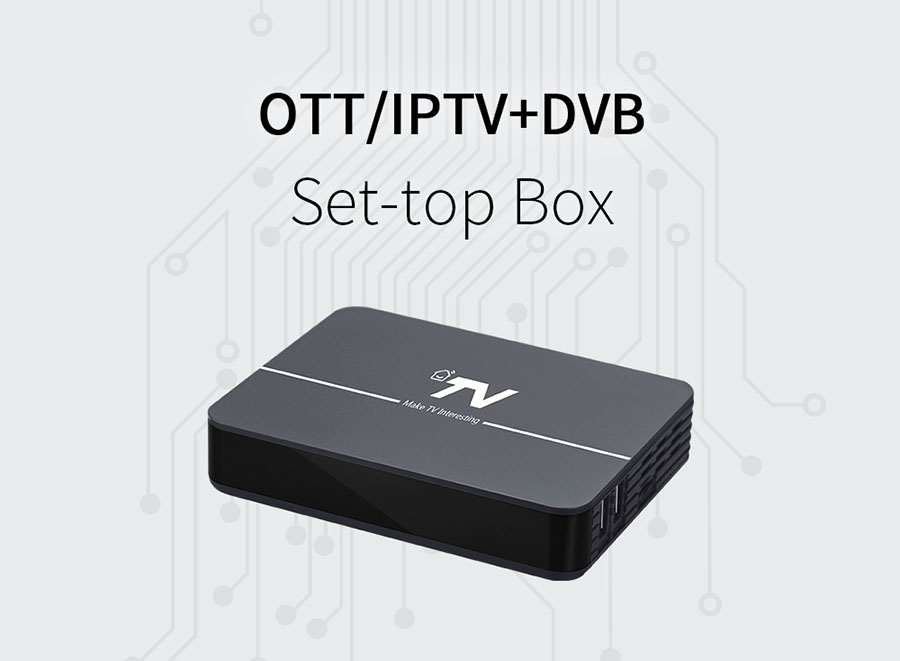

DV8804-T2 4K HD OTT/IPTV DVB-T2 Hybrid Android TV Set-top Box

DV8804-T2 is a Quad Core 4K HD OTT/IPTV+DVB-T2 Android TV OS Set-top Boxes

●Android 8.0 / 9.0 OS
●Panaccess, Conax, NSTV, Widevine,etc
●Fully compliant with HD DVB-T2/T, DVB-S2/S, DVB-C, ISDB-T, ATSC, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
●Support for 3D Blu-ray playback
●Support HDR

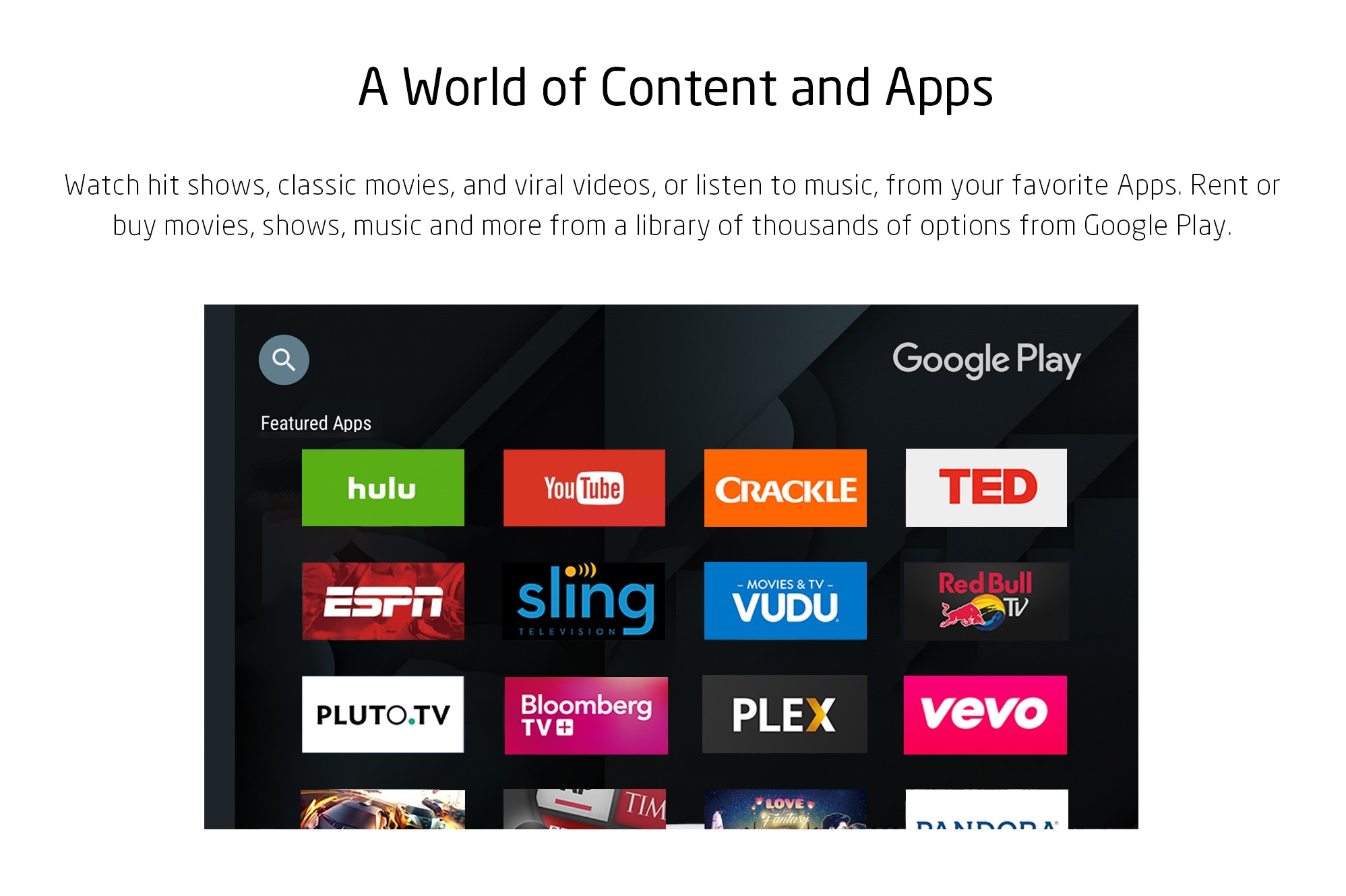

●YouTube, Facebook and Twitter,etc
Contact Sales

DV8804-T2 4K HD OTT/IPTV DVB-T2 Hybrid Android TV Set-top Box

DV8804-T2 4K HD OTT/IPTV DVB-T2 Hybrid Android TV Set-top Box

Basic parameters
System SoC: Hi3798M V200
CPU: ARM Quad 64-bit Cortex-A53
GPU: Mali-450
DRAM: DDR 2GB
Flash: Flash 8GB(16GB/32GB/64GB Optional)
OS: Android TV 8.0 or higher
Network RJ45 Interface 10M/100M adaptive(10M/100M/1000M Optional)
Build in Wi-Fi 2.4GHz/5GHz 802.11 b/g/n
Bluetooth 4.0
Support most external 3G/4G USB dongle(Optional)
Connectivity
AV Output HDMI2.0b, CVBS
Network  RJ45
Peripheral Interface USB2.0 x1,USB3.0x1, SD card slot
Power Interface DC 12V
Other Interface Front panel: IR receiver, Power LED indicator
Rear Panel:  Switch
Media
Video Decoder:
H.265/HEVC 10 bit 4K*2K@60fps, H.265 decoding up to 4K*2K@30fps, Real 8/9/10 1080p@60fps Div*3/4/5/6 1080p@60fps, MPEG-1/2/4, AVS/AVS+
Format:
MKV, WMV, TS, M2TS, MOV, MP4, AVI, MPG, MPEG, DAT, VOB, FLV, 3GP, DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG L1/L2, DRA, AAC-LC, HE AAC V1/V2, APE, FLAC, OGG, AMR-NB/WB(AC-3 , DTS optional0
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, MP1, MP2, MID, AIFF etc.
Subtitle format SRT, ASS, SSA etc.
Photo format JPEG, BMP, PNG etc.
Features
4K Support 4K*2K resolution output, H.265 decoding up to 4K*2K@60fps
Network streaming HTML5, RTSP, HLS
Remote manager TR069
Multi-screen interaction Miracast, DLNA, Airplay
Air Remote Can use the Android and iOS mobile phone to control
System upgrading Upgrade software via USB or network
Local Media Playback Video/Audio/Picture
Support for 3D Blu-ray playback
Games Android 2D/3D games
APP XBMC, Facebook, YouTube, Skype, Google Play etc.
Others
Input voltage DC in 12/1A
Power consumption 10W Max
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H): 132mm*100mm*30mm
Material: plastic
Proposed Accessory Remote control and Battery, User manual, Power adapter, AV cable, HDMI cable

Why choose us?
  • A public enterprise with 15 years' experiences in the industry of Digital TV and OTT/IPTV
  • 1-stop end-to-end ready cost-effective OTT TV solution & products
  • SDMC has our own DVB middleware and are being used for many broadcasters
  • SDMC’s XMediaTV platform could provide fast customization for operators
  • Rich experiences on Android TV and Netflix enable us affordable, available, and accessible to the operators’ market.
  • With more than 100 R&D engineers
  • Enjoy 100+ employee's 7*24 support service
  • More and more valued-added solutions to drive revenue growth
