DV8230-AP 4K Quad Core Android IPTV / OTT Set-top Box STB With Wireless Router

DV8230-AP is a quad core 4K android OTT TV box with WiFi Hotspot. It is designed for ISPs, OTT operators and content aggregators, wholesalers that provide services based on IPTV, OTT and VoD.

● 64-bit Cortex-A53 CPU
● VP9 up to 4K*2K@60fps
● HDMI 2.0a, CEC, HDCP2.2
● 4Kp60 HEVC Main-10 Decoding
● The Stable, Stronger Wi-Fi Signal.
● DRM: Widevine, Playready, Verimatrix
● Support HDR 10 and HLG HDR processing
● Dual band Wi-Fi 2.4GHz / 5GHz 802.11b/g/n

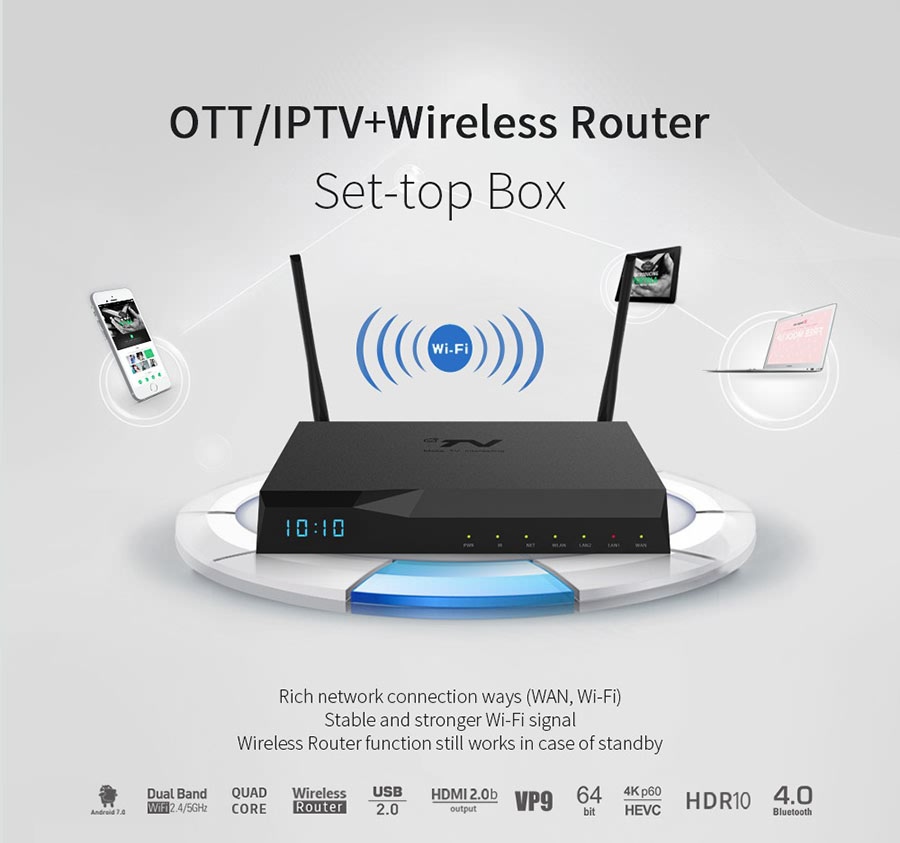

OTT/IPTV Set-top box STB with Wireless Router DRM/Middleware
Amlogic S905X Quad Core A53 CPUDDR3 2GB+Flash 8GB4K HDR10cinema-quality experience
Air Remote
Customized UI/Content/FunctionProfessinal STBs&End-to-end solution provider
Basic parameters
System SoC: Amlogic S905X
CPU: ARM Quad 64-bit Cortex-A53 up to 1.5GHz (DVFS)
GPU: Penta Core Mali-450 up to 750MHz+(DFS)
DRAM: DDR3  2GB
Flash: eMMC 8GB (4GB, 16GB, 32GB, 64GB Optional )
OS: Android 7.0
Network RJ45 Interface 10M/100M adaptive (10M/100M/1000M Optional)
Build in Wi-Fi 2.4GHz 802.11b/g/n (2.4GHz/5GHz Optional)
Bluetooth 4.0(Optional)
Support most external 3G/4G USB dongle(Optional)
Wireless Router
WAN Type PPPoE/DHCP/Static IP
Wi-Fi Functions 2.4GHz 802.11b/g/n
RJ45 Support RJ45 Interface 10M/100M adaptive (10M/100M/1000M Optional)
Wi-Fi Extension universal repeater and WDS function for easy Wi-Fi extension
Wireless Functions SSID, Wireless Bridge, MAC Autehntication, WDS, WPS, Wireless Scheduler
NAT/Routing Port Forwading. DMZ/Twin IP, Port Trigger
Utility VPN, DDNS, WOL, Host Scan
Interface 2 *10/100Mbps LAN Ports, 1 *10/100Mbps WAN Port, 1 *RST Button,
 1 *WPS Button,
2*5dBi external antennas
Connectivity
Video  HDMI2.0a, AV
Audio Optical
Peripheral interface USB 2.0 x2, TF card
Power interface DC 5V
Other interface Front panel:  IR receiver, 7*indicator
Real panel: Standby key
Media
Video Decoder:
H.265 10-bit 4K*2K@60fps, H.264 AVC/MVC 4K*2K@30fps,
VP9 4K*2K @60fps, AVS+, MPEG1/2/4 ASP, WMV/VC-1, RealVideo8/9/10
Format:
MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG, DAT, VOB, FLV, 3GP,
 DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG (AC3 Optional)
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Subtitle format SRT, ASS, SSA etc.
Photo format HD JPEG/BMP/PNG etc.
Others
Input voltage DC in 12V/2A
Power consumption 8W Max
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H): 180mm*125mm*30mm
Material: plastic
Proposed Accessory Remote control, User manual, Power adapter, HDMI cable
