DV8304-T2 Quad-core 4K HD Android Hybrid OTT DVB-T2 Box Support HDMI2.0b VP9


DV8304-T2 is a quad-core 4K HD Android Hybrid Box. Fully compliant with DVB-T2/DVB-T standard

●Android 7.1
● VP9, H.265 4K@60fps
●HDMI 2.0b, CEC, HDCP2.2
●RJ45 Interface 10M/100M adaptive Network
●Quad core 64-bit CPU and Penta Core Mali-450
●Powerful platform for enabling hybrid TV and OTT IPTV services

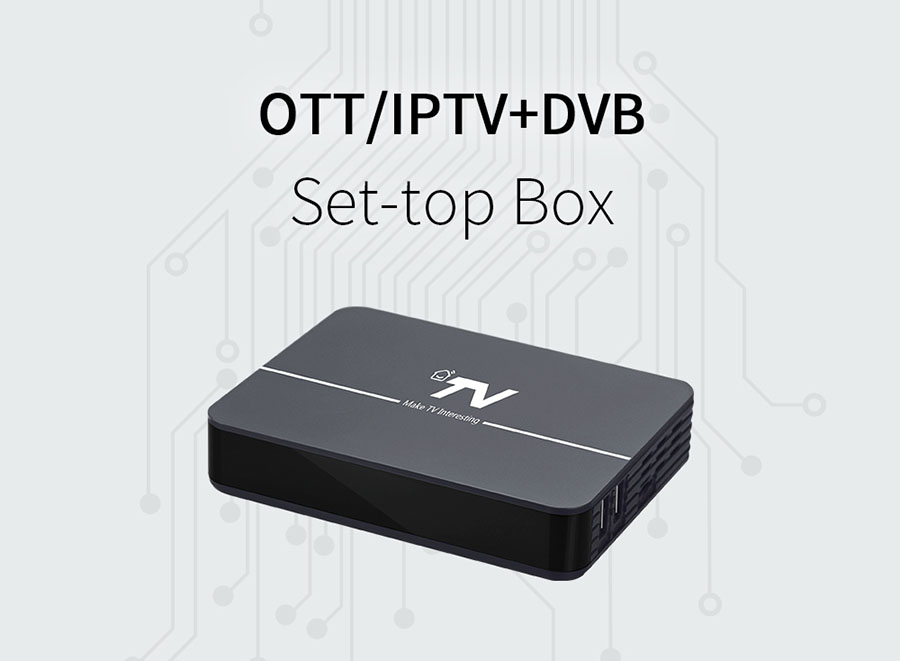

ott/iptv+dvb hybrid stb
DRM Middleware CAS(optional)

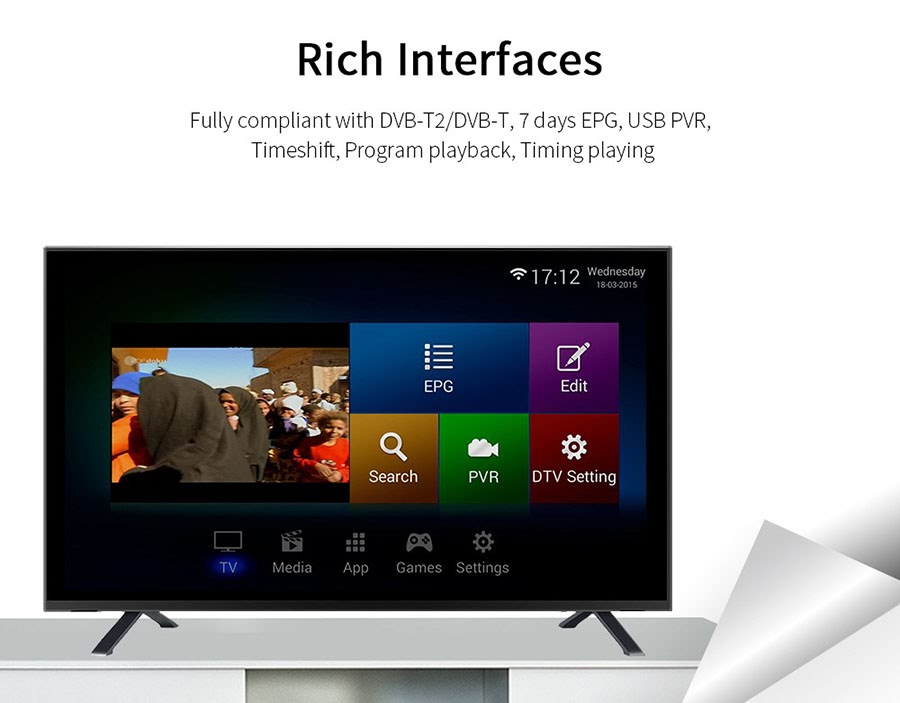

Rich interfacesH.265 Decoding
Amlogic S905D Quad core A53 CPU
DDR3 2GB+Flash 8GB
Customized UI/CONTENT/FUNCTION
professional STBs & End-to-End solution provider
Basic parameters
System CPU: ARM Quad 64-bit Cortex-A53 up to 1.5GHz DVFS
GPU: Penta Core Mali-450 up to 750MHz+ DFS
DRAM: DDR3 1GB (Optional 2GB)
Flash: eMMC Flash 8GB (16GB, 32GB, 64GB Optional )
OS: Android 7.1
Network RJ45 Interface 10M/100M adaptive
Built-in Wi-Fi 2.4GHz 802.11 b/g/n (2.4GHz/5GHz Optional)
Bluetooth 4.0 (Optional)
Support most external 3G/4G USB dongle(Optional)
Tuner Frequency range: (UHF)474MHz~858MHZ
Input level: Level -85dBm~-20dBm
Input impedance: 75Ω
Demodulation:QPSK,16QAM,64QAM,256QAM
Connectivity
RF RF IN, RF OUT
Video Output HDMI2.0b, AV Out
Audio Output Optical
Network  RJ45
Peripheral Interface USB2.0 x2, Micro SD card slot, CA card slot
Power Interface DC 5V, Power switch
Other Interface Front panel: IR receiver, IR/Power/Net LED indicator
Media
Video Decoder:
VP9@4K*2K@60fps, H.265 10-bit 4K*2K@60fps, H.264 AVC/MVC 4K*2K@30fps, AVS+, MPEG1/2/4 ASP,
 WMV/VC-1, RealVideo8/9/10
Format:
MKV, WMV, M2TS, MOV, MP4, AVI, MPG, MPEG, DAT, VOB, FLV, 3GP,
 DIVX, F4V, ASF, M2V etc.
Audio Decoder:
MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG (AC3 Optional)
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Subtitle format SRT, ASS, SSA etc.
Photo format HD JPEG/BMP/PNG etc.
Features
Digital  TV Fully compliant with HD DVB-T2/DVB-T, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing
4K Support 4Kp60 HEVC Main-10 Decoding
Video Output Support HDMI2.0b, CEC, HDCP2.2
Network streaming HTML5, RTCP, RTMP, RTP, RTSP, HLS, Smooth streaming
customization Support customized service
Remote manager TR069
Multi-screen interaction Miracast, DLNA, Airplay
Air Remote Can use the android and iOS mobile phone to control
System upgrading Upgrade software via USB or network
Local media playback video/audio&picture
Games Android 2D/3D games
Others
Input voltage DC in 5V/2A
Power consumption 10W Max
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H): 132mm*100mm*30mm
Material: plastic
Proposed Accessory Remote control and Battery, User manual, Power adapter, AV cable, HDMI cable , Warranty card
