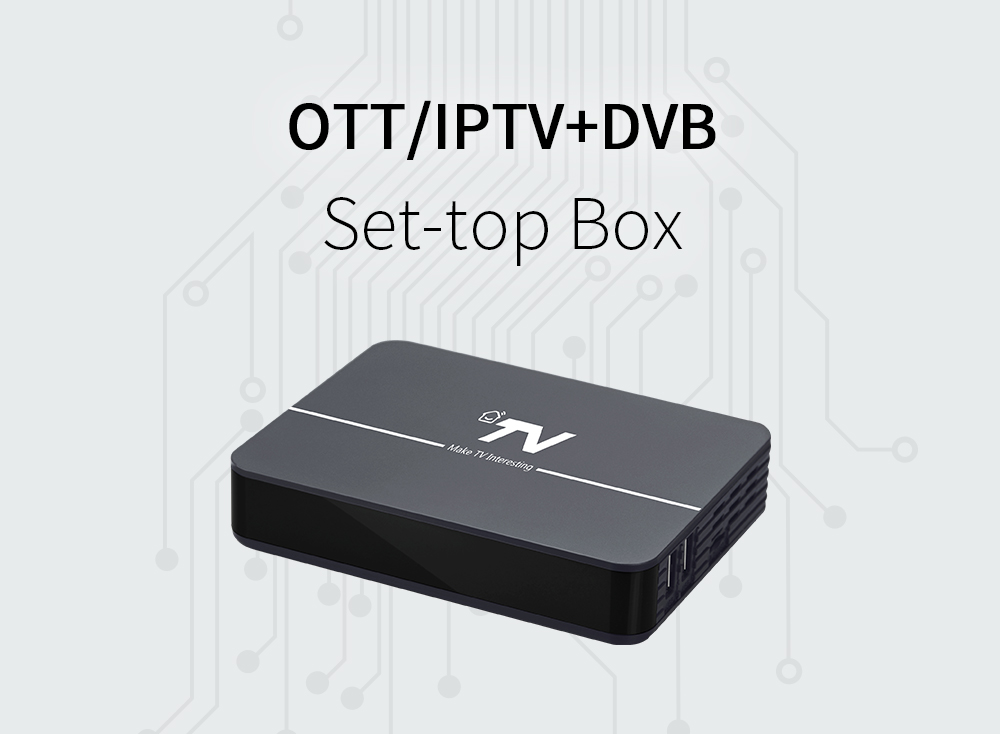

DV3004-C DVB-C Digital Set-Top Box for Cable TV

DV3004-C DVB-C SD digital tv Set-top Box.  Integrated with leading middleware,DRM and CAS, it allows operators with cost-effective integration and fast service delivery
  • Fully compliant with DVB-C
  • Support Novel Super TV CAS
  • Upgrade software via OAD
  • Support multi-language menu
  • 7 days EPG, Teletext, Subtitle, Multi-language audio track function
Contact Sales
Basic parameters
System Resources Chipset: HM1521-M
Flash Memory: 4MB
DDR Memory: 32MB
Tuner Parameter Input frequency: 47~867MHz
Input level:(64QAM)-83~-10dBm  (16QAM)-89~-10dBm
Input impendence: 75Ω
Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
QAM Type: ITU-T J.83 Annex A/ C, Annex B
Video Decoder: MPEG-2 MP@HL
Aspect ratio: 4:3, 16:9
Audio Decoder: MPEG-1 Layer I/II, MPEG-2 Audio Layer I&II
Audio output Impedance: Low
Output mode: Stereo, Left and Right
Connectivity
RF RF IN
Video Output CVBS Audio L&R
Peripheral Interface CA card slot
Power Interface DC 5V
Other Interface Front panel: IR Receiver, LED Indicator
Features
Fully compliant with DVB-C digital TV reception standards
Digital Cable TV QAM Modulator, Supports Annex A/B/C
PAL-N、PAL-Nc、PAL M
Novel SuperTV CAS
Variable aspect ratio (4:3, 16:9) 4:3 Pan & Scan or Letter Box modes
Support multi-language menu
7 days EPG,Teletext, Subtitle, Multi-language audio track function
Upgrade software via OAD
Others
Input voltage DC in 5V/1.5A
Power consumption Max.6W
Operation temperature 0~40℃
Physical characteristics  Size(L*W*H): 132mm*100mm*30mm
Proposed Accessory Remote control and Battery, User manual, Power adapter, AV cable

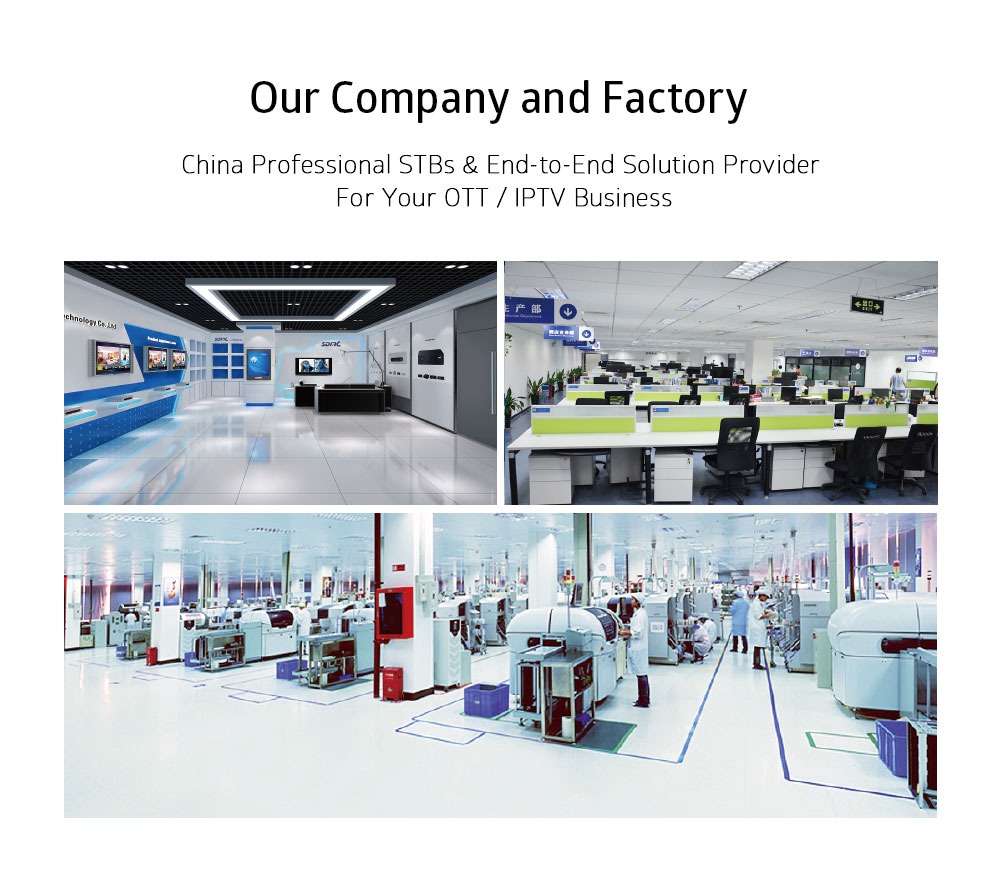

Why choose us?
  • A public enterprise with 15 years' experiences in the industry of Digital TV and OTT/IPTV
  • 1-stop end-to-end ready cost-effective OTT TV solution & products
  • SDMC has our own DVB middleware and are being used for many broadcasters
  • SDMC’s XMediaTV platform could provide fast customization for operators
  • Rich experiences on Android TV and Netflix enable us affordable, available, and accessible to the operators’ market.
  • With more than 100 R&D engineers
  • Enjoy 100+ employee's 7*24 support service
  • More and more valued-added solutions to drive revenue growth
